20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers

    Buy cheap 20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers from wholesalers

    Buy cheap 20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers from wholesalers
    • Buy cheap 20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers from wholesalers
    • Buy cheap 20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers from wholesalers
    • Buy cheap 20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers from wholesalers

    20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XP203
    Certification : CE ISO
    Price : negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 45days
    • Product Details
    • Company Profile

    20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers


    20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers XCMG


    Quick Details


    Power(W):86KW

    Travel Speed:4-18.4KW/H

    After-sales Service Provided:Free spare parts, Video technical support, Online support

    Warranty:1 Year

    Condition:New

    Type:light vibratory rollers

    Grade Ability:20%

    Place of Origin:Jiangsu, China

    Brand Name:XP203

    Dimension(L*W*H):2500*1200*1750mm

    Weight:20ton

    Certification:CE ISO

    Product name:20 Ton earth compactor machine road roller XP203

    Engine Model:SC4H115.4G2B

    Tire size:11.00-20-16pr

    Rated Power(kW):26kw

    Ground pressure:200-400kpa

    Compacting width:2250mm

    Total length:4800mm

    Total width:2356mm

    Total height:3330mm

    Fuel consumption:≤205(1±5%)


    Product Description


    XP203
    1. Engine: YC4A125Z
    2. Roated Power: 92kw
    3. Amount: front 4, rear 5


    XP163/XP203 tyre compactor is the landmark of 3 series products developed on the basis of 2 series products. It leads the development of Chinese tyre compactor due to its high start, high technique, high performance, and high quality. The machine features beautiful appearance, driving comfort, simple operation, excellent performance, safety and reliability, and convenient maintenance. It can be applied in the construction of asphalt road, base layer, hypo-base layer, and fill construction. It is a necessary compact equipment for road construction and water conservancy construction, especially for the high-grade highways.

    Driving comfort
    Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.

    Simple operation
    There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.

    Excellent performance
    Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.

    Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.

    The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.


    Specifications

    ModelUnitXP203
    Min. working weightkg11740
    Max. working weightkg20000
    Ground pressurekPa
    Travel speedkm/h200-400
    Speed I4.2
    Speed II8.2
    Speed III17.4
    Reverse speed I4.17
    Reverse speed II8.2
    Theoretical gradeability%20
    Min. turning external radiusmm7330
    Min. ground clearancemm250
    Compaction widthmm2250
    Roller overlap amountmm45
    Tyre specification11.00-20-16PR
    AmountFrontFront 4 Rear rear 5
    Engine modelYC4A125Z
    TypeWater cooling, pressurizing
    Rated powerkw @2200 r/min92
    Engine oil consumptiong.kw/h≤230
    Hydraulic oil tank capacityL60
    Diesel oil tank capacityL150
    Overall lengthmm4770
    Overall widthmm2250
    Overall heightmm3285

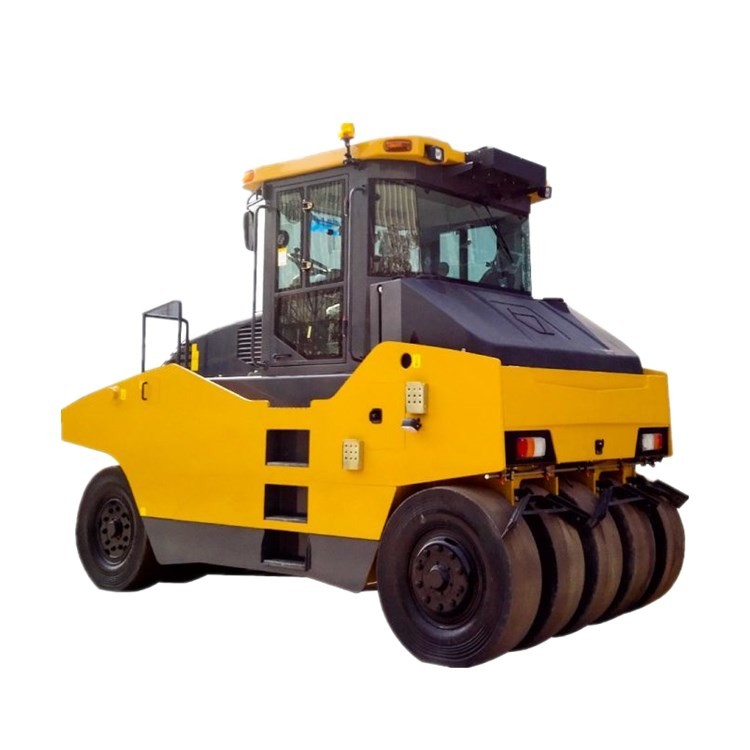

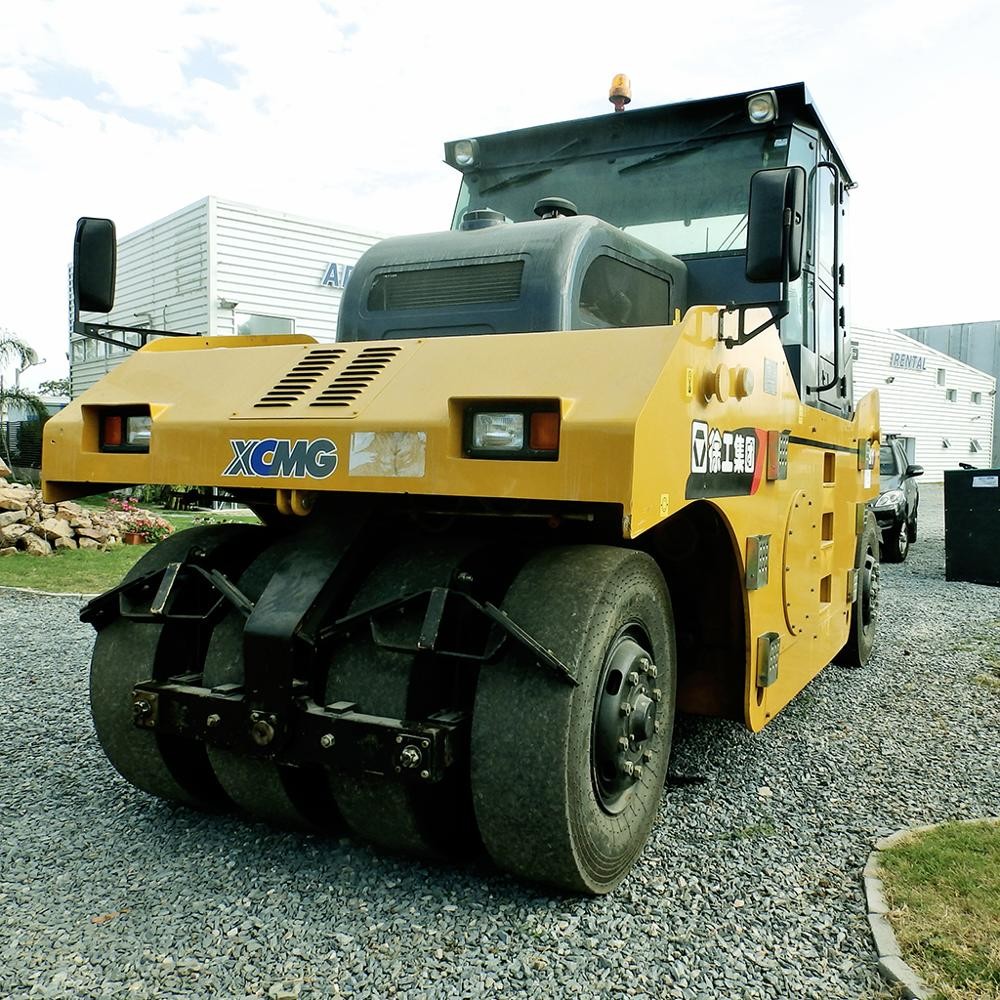

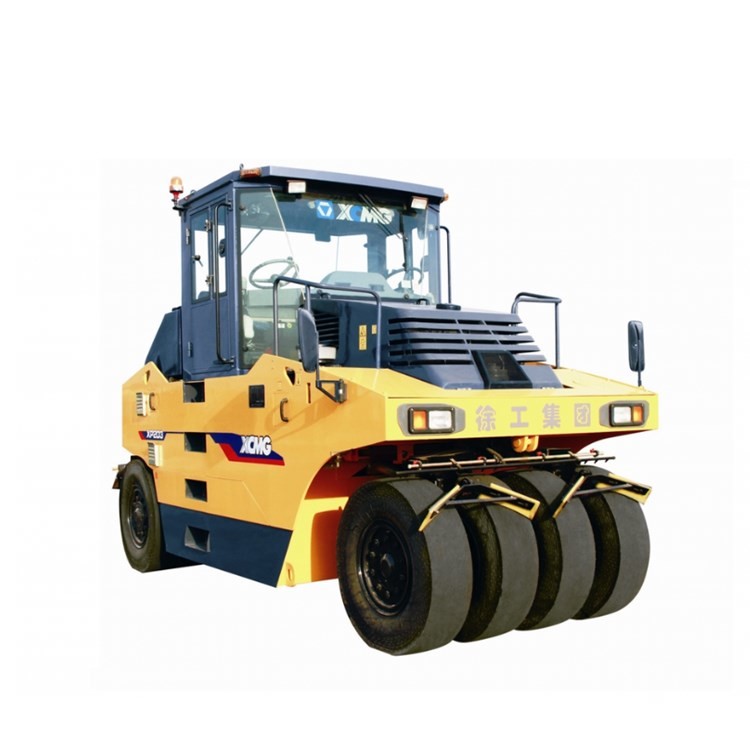

    Product pictures


    20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers20 Ton Earth Compactor Machine Road Roller XP203 Light Vibratory Rollers
