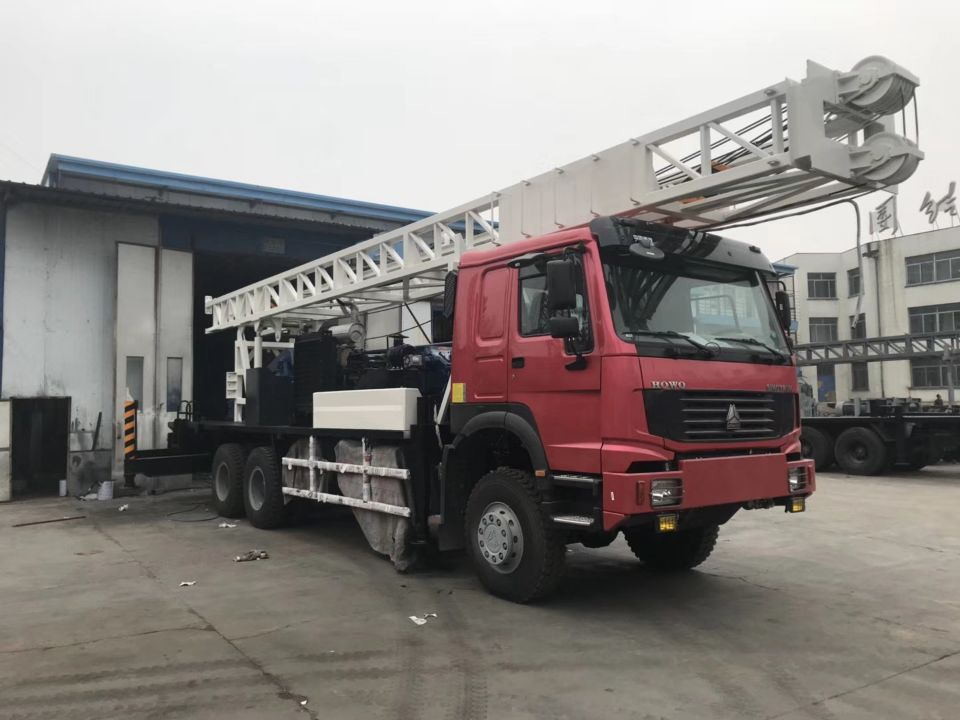

BZC400CHW Truck-mounted Water Well Drilling Rig 400m Drilling Depth SINOTRUK Chassis

1. BZC400CHW truck mounted water well drilling rig is our direct rotary drilling rig. The rig adopt SINOTRUK 6X4/6X6 special rig chassis . It is equipped with Cummins diesel engine 112kw on the chassis as drilling power.

2. There are hydraulic double winches, the two winches stepless rise and down, can achieve fast down the hook.

3. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2 mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit

4 We set up a generator , so that it is convenience to illuminate or work at night.

4. It has a hydraulic cylinder control double card board forward and backward, it makes the insurance card board closed, to achieve stuck or release the pipe joints.

5. It use integrated design of pneumatic, to achieve the BW850 mud pump clutch using pneumatic remote control, it has high degree of automation and easy-saving operation.

6. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.

7. The rotary table use stir bars, internal turntable use spiral arc gear to transmission, it has large torque, it about 2 times of similar products at domestic and foreign.

8.. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve unloading the first thread , then reverse the rotary table to protect gear box.

9. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

BZC400CHW truck-mounted water well drilling rig is truck-mounted rotary drilling rig.The drilling rig adopts the chassis of SINOTRUK HOWO 6×4 or 6×6 special vehicle.The diesel engine,double hydraulic winches,mud pump,rotary table,mast,kelly are all installed on the chassis.BZC400CHW water well drilling rig can drill with mud pump,air foam pump .It is highly adaptable to the stratum structure and can be used for drilling in clay,sand,highly weathered rock,bedrock,basalt and other strata.

Our customer all over the world

African countries:

Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.

South America:
Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

South Pacific:
Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

Asia countries:
North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

Technical parameter

Product picture

Founded in 2001 Shandong Global Heavy Truck Import&Export Co.,Ltd is a group of companies and a large factory&exporter authorized by SINOTRUK,FAW, BEIBEN,XCMG. Registered capital: US$90,000,000.00 . Headquartered in Jinan city of CHINA, the company has environmental advantages.Its business scope include: international trade business, domestic sales, Binzhou sales and service business.

Located on bordering area of Binzhou-Zibo highway and 220 National Road , the company covers an area of 100000 square meter, and has advantageous geographical location. Also the company has 9,000 square meters of repair workshop, 800 square meters of parts warehouse , 4,000 square meters of parking and 3,500 square meters of comprehensive office building. The company Owns two large auto 4S shops for China FAW and China National Heavy Duty Truck Group Co.,Ltd , and also owns SHAANQI, HONGYAN, CAMC, FAW Bus stores.The company has built FAW has Binzhou accessories store, FAW Wuxi Diesel accessories stores, Weichai accessories stores.The company is the sales centers and store confluence of a number of Chinese and foreign manufacturers such as DEUTZ(Dalian) Engine agent, heavy truck parts center in northern Shandong, Shaanxi heavy truck, Shaanxi Fast, Chongqing pumps, Wuxi Weifu, BOSCH etc. .owning professional and brand advantage, The company can provide users with comprehensive, high standard one-stop service.

The company has a large number of experienced personnel in areas such as vehicle sales, service, engine repairing and maintenance services ,and has established a comprehensive, unique management system.the company implements a system of internal network management, maintenance services to implement 24 hours hotline service with more than 10 units of service vehicles . The company owns a domestic sales team of 100 people, there are more than 30 people have more than 10 years of experience in overseas ,and they can use English, Arabic, Spanish, Russian service customers in different countries and regions. The company’s Existing service team has 90 people, 20 percent of them accepted college education , 17 percent are intermediate or senior technical staff , 90% or more of the maintenance staff accepted secondary education and pre-job training.In terms of technical equipment, The company is equipped with a high pressure pump test bench (15KW), line hanging, engine comprehensive performance test bed, electric lift, drilling, baking room, presses, air compressors and other equipment.establishing more than 20 technical service stations including automobile, engine, gearbox, fuel injection system,the company can provide medium and heavy trucks and commercial vehicles, construction machinery, generator set, boats machine with professional services.

The company has been through the ISO2000 quality certification system which is China Road Transport Association, was awarded Binzhou "consumer satisfaction enterprises", Jinan "Credible Enterprise", Jinan "AAA corporate credit rating companies", Shandong" auto maintenance integrity enterprise" titles.

Adhering to the "customer first" philosophy and taking the market as the orientation, the company established a promotion system based on "vehicle business-oriented service marketing , the main brand stores for the support and maintenance and promotion system" . Has been fully recognized and trusted by all the partners and customers.

Sincerely Welcome customers and friends to JINAN CITY OF CHINA to visit and guide the work!
