    Yellow XCT12L4 Main Boom Truck Crane 30.5m 12t Small WP6.220E40

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XCT12L4
    Certification : ISO/CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Unit/Units per Month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Yellow XCT12L4 Main Boom Truck Crane 30.5m 12t Small WP6.220E40

    Yellow China XCT12L4 Main Boom 30.5m 12t Small Crane for Truck WP6.220E40

    Product description

    XCM-G XCT12L4 is a new generation of two-bridge four-arm products, breaking the ceiling limit of 30.5 meters.Using the machine optimization and matching technology and calculation and analysis platform, the highest performance of two bridges, covering the three bridge product performance.Power system configuration, to meet different user needs, the use of diesel engine and engine Weichai two configurations to meet the needs of different users.

    XCT12L4 Truck crane is designed to mainly aim at domestic market, and to take international market requirements into consideration. It is mounted on a self-made special chassis, which is suitable for driving on a wide range of roads.
    It has high lifting height, powerful lifting capacity and high working efficiency. It is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
    It is mounted on a two-axle truck crane chassis. Four-section boom with octagonal profile, a lattice jib, built-in double independent winches, new energy-saving power system, fixed counterweight and new energy-saving hydraulic system are available.

    The crane has newly designed XCMG G1 appearance of Truck Crane, luxurious full-dimension driver's cab and XCMG man-machine interactive system with the level of a car. Its performance takes the lead in the industry. It is more intelligent, energy-saving and user friendly to operate.

    Product parameter

    Dimension Unit XCT12L4
    Overall length mm 10900
    Overall width mm 2500
    Overall height mm 3550
    Weight
    Total weight in travel kg 16000
    Power
    Engine model SC7H230Q4/WP6.220E40
    Engine rated power kW/(r/min) 170/2300 162/2300
    Engine rated torque N.m/(r/min) 900/1400 850/1400-1600
    Travel
    Max. travel speed km/h 90
    Min. turning diameter m 18
    Min. ground clearance mm 250
    Approach angle ° 21
    Departure angle ° 13
    Max. grade ability % 41
    Fuel consumption for 100km L 25
    Main performance
    Max. rated total lifting capacity t 12
    Min. rated working radius m 3
    Turning radius at turntable tail m 2.57
    Max. lifting torque kN.m 482.5
    Base boom m 9.5
    Max.main boom m 30.9
    Max.main boom+jib m 38.1

    Our service

    Sales service
    Being available online 24 hours a day
    Responding to your e-mails at the first time
    Providing the best choice according to the customers needs
    Giving reception and organize visit of the factory, meeting technical communication for the customers
    After-sales service
    Warranty: Asiaway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
    During the warranty period the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification
    Installation& Maintenance: Asiaway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.

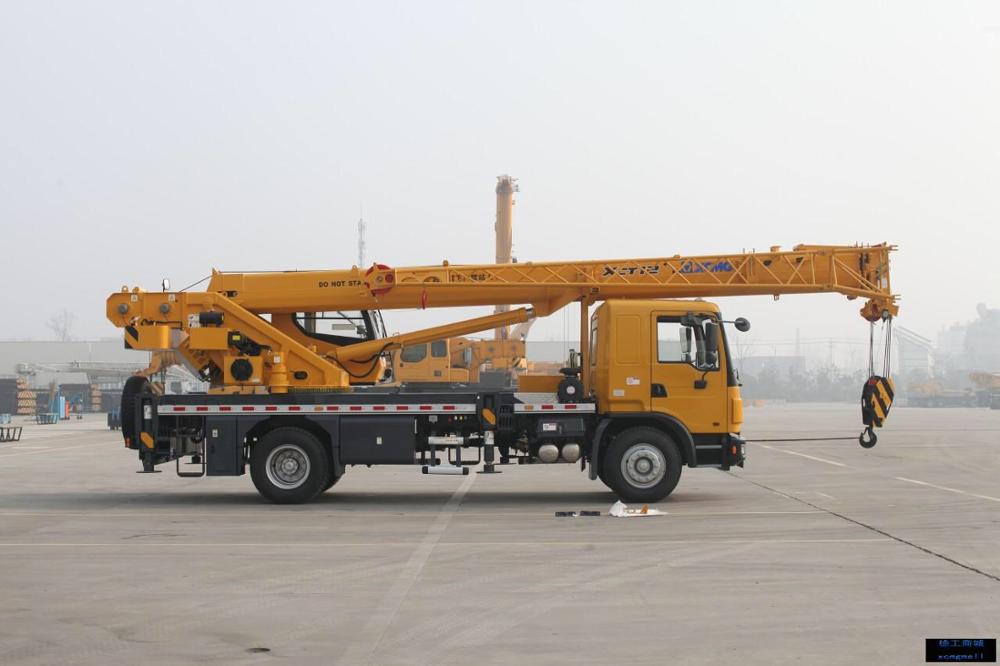

    Product picture

    Yellow XCT12L4 Main Boom Truck Crane 30.5m 12t Small WP6.220E40Yellow XCT12L4 Main Boom Truck Crane 30.5m 12t Small WP6.220E40Yellow XCT12L4 Main Boom Truck Crane 30.5m 12t Small WP6.220E40Yellow XCT12L4 Main Boom Truck Crane 30.5m 12t Small WP6.220E40
