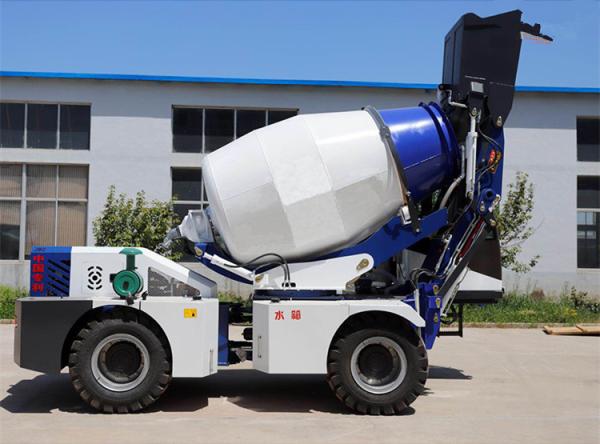

    4X4 Cement Mixer Truck With YN27GBZ Engine And 12-16.5-12PR Tires

    Ask Lasest Price
    Brand Name : HL
    Model Number : HL
    Certification : ISO/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces/month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    4X4 Cement Mixer Truck With YN27GBZ Engine And 12-16.5-12PR Tires

    4X4 Self Loading Concrete Cement Mixer Truck With YN27GBZ Engine And 12-16.5-12PR Tires


    Product description


    Self- loading mobile concrete mixer truck, suitable for various special environments, congested urban areas and remote areas. It can be used for concrete road maintenance, bridge tunnel construction, township highway construction, national defense facility base construction, high-speed railway construction. Maintenance and other special concrete structures away from commercial concrete mixing plants provide customers with the best solution for mixing and pouring concrete. At the same time, the equipment is user-selectable in addition to commercial concrete mixing stations and fixed mixers. Another high-efficiency, low-cost concrete mixing operation to replace commercial concrete mixing plants or stationary mixers.


    Features:

    Auto Weighting Scale system (English / Russian / Spanish Version)

    Drum Bottom lifting up for increasing speed of discharging concrete

    Water Pump

    Air-condition

    270 degrees discharge angle

    Articulated Steering Mode


    Packing:


    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.


    Specification


    Diesel Engine

    Model: YN27GBZ
    Total displacement, no Cylinders: 2700cc-4 in line
    Injection: direct with mechanical control
    Cooling: water, dry air filter
    Max. power: 55Kw(106Hp)
    Max. torque: 237Nm at 2000rpm

    Electric System

    Alternator: 28V-500Wa (18A)
    Battery: 2*12V-80AH (343A)
    Road light system, rear working lights

    Steering

    4 steering wheels, Assisted by means of load-sensing power steering on 4 steering wheels.

    4x4 Four-wheel Drive

    Hydraulic torque converter transmission with closed Piston walking pump (EATON) and reverse gear control on the steering wheel.
    Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
    Speed:2 forward gears 2 reverse gears
    2 forward gears: Ist 0-7.0Km/h, IInd 7-20kph
    2 reverse gears: Ist 0-7.0Km/h, IInd 7-20kph

    Axles and Wheels

    Front wheel is steering with planetary reduction gears on the Isuzu axle with flanged gearbox
    Rear axle is oscillating (±28°) with planetary reduction gears
    Tires: 12-16.5-12PR
    Maximum L: AD2540kg, 450kPa, RIM: 9.75

    Brakes

    Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual
    circuit
    Negative type parking brake, with internal wheel hub discs on the front axle

    Water System

    24V "Self-priming" volumetric water pump with quick-suction
    Maximum capacity: 90 liters/minute
    Two tank with a total capacity of 2*175liters.

    Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display
    Water pump activation from the driver's seat
    Washing vehicles outside by water blast gun via high pressure water pump

    Mixing and Unloading

    Double-cone drum with double-spiral mixing screws and convex bottom
    Geometrical drum volume: 2200liters
    Drum rotation speed: 15rpm
    Concrete produced as: 1.2 m³
    Counter frame mounted on "heavy-duty" ball fifth wheel, with 270° hydraulic rotation and automatic locking by means of hydraulic
    brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with
    adjustable handle control manually positioned in the cabin and at the rear of the machine.
    Drum raising up to the horizontal position by means of 2 double-acting jacks
    Unloading chute with mechanical tilting by means of one handle controlled and 90° rotation, independent from the mixing drum
    inclination
    Removable chute if unloading from hopper
    2 unloading chute extensions provided as standard equipment

    Equipment Hydraulic System

    Gear pump: DEHONG (brand)
    Maximum flow rate: 20/40liters/min.
    Maximum pressure: 16MPa
    3-Handles controlled with multi-function joystick
    Aluminum heat exchanger for hydraulic oil cooling
    Pressurized open-circuit intake with oil filter replaceable from the outside

    Loader

    Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders
    Automatic unloading hatch driven by a mechanical lever
    Volumetric capacity: 300 liters
    Number of loading times: around 6

    Cab

    Closed cab with heating system
    Tilting front window
    Anatomic seat with flexible suspension and height adjustment

    Service Refill Capacities

    Fuel tank: ......................110liters
    Total hydraulic system capacity: .......110 liters
    Engine oil: ...................16 liters

    Weights

    Operating weight: 5200kg
    Maximum gross weight: 7600kg
    Load-carrying capacity: 2400kg


    Product picture
