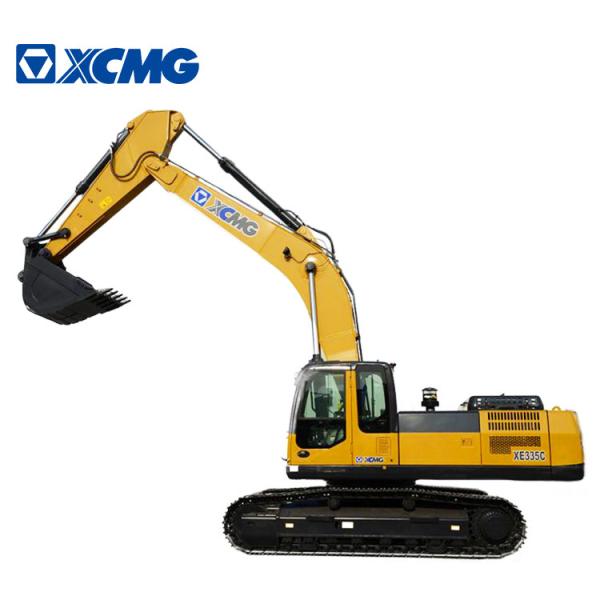

    XCMG XE335C Heavy Construction Machinery Hydraulic Isuzu Engine Excavator

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XE335C
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets/year
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    XCMG XE335C Heavy Construction Machinery Hydraulic Isuzu Engine Excavator

    XCMG Official XE335C rc Manufacturer Hydraulic Excavator / Heavy Construction Machinery

    Product Quick Details:

    Bucket capacity:1.4m3

    Operating Weight:33800kg

    Rated Speed:5.5km/h

    Warranty:1 Year

    After-sales Service Provided:Video technical support, Online support, Engineers available to service machinery overseas

    Applicable Industries:Manufacturing Plant, Farms, Construction works , Energy & Mining

    Place of Origin:Jiangsu, China

    Brand Name:XCMG

    Condition:New

    Moving Type:Crawler Excavator

    Maximum Digging Height:10074mm

    Maximum Digging Depth:6972mm

    Max Digging Radius:4424mm

    Certification:CE/ISO9001

    Hydraulic Cylinder Brand:XCMG

    Hydraulic Pump Brand:XCMG

    Hydraulic Valve Brand:XCMG

    Engine Brand:ISUZU

    UNIQUE SELLING POINT:Environmental,Energy-saving,Large power engine

    Power(W):190.5 kw

    Engine output power:190.5 kw

    Max. traction:261 kN

    Gradeability:35%

    Bucket digging force:289 kN

    Crawler gauge:2590mm

    Product Features:

    1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
    2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
    3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
    4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

    5.The original ISUZU engine provides powerful performance and low fuel consumption,applied with the most optimized matching system.
    6. Advanced energy-saving Kawasaki hydraulic system.
    7.New luxury and comfortable cab system with large space is designed on the basis of ergonomic concept.
    8. Heavy load and strengthening type boom and arm can guarantee the powerful digging force under poor working conditions.
    9. Optional break hammer and pipeline,quick coupler,cab fence,traveling alarm and rotary warning lights are available.

    Product Specification:

    XE335C
    Unit
    Parameter value
    Operating weight
    kg
    33800
    Bucket capacity
    1.4
    Model
    Engine
    AA-6HK1XQP
    No. of cylinders
    ---
    6
    Output power
    kW/ r/min
    190.5/2000
    torque/speed
    N.m
    872.8/1700
    Displacement
    L
    7.79
    Travel speed(H/L)
    km/h
    5.5/3.3
    Rotating speed
    r/min
    9.7
    Gradeability
    °
    ≤35
    Ground pressure
    kPa
    66
    Bucket digging force
    kN
    263
    Arm digging force
    kN
    225
    Maximum traction
    kN
    261
    Main pump
    --
    2
    Rated flow of main pump
    L/min
    2×280
    Fuel tank capacity
    L
    630
    Hydraulic tank capacity
    L
    350
    Engine oil capacity
    L
    28
    Overall length
    mm
    11388
    Overall width
    mm
    3190
    Overall height
    mm
    3515
    Width of platform
    mm
    2950
    Length of crawler
    mm
    4725
    Overall width of chassis
    mm
    3190
    Width of crawler
    mm
    600
    Wheel base of crawler
    mm
    3183
    Min. tail swing radius
    mm
    3570
    Max. digging height
    mm
    10074
    Max. dumping height
    mm
    6898
    Max. digging depth
    mm
    6972
    Max. digging depth at the range of level 8 feet
    mm
    6728
    Max. vertical wall digging depth
    mm
    5366
    Max. digging reach
    mm
    10650
    Min. swing radius
    mm
    4424
    Length of boom
    mm
    6400
    Length of arm
    mm
    2670
    Bucket capacity
    1.4
    Length of arm
    2900
    Bucket capacity
    1.6 /1.4
