    35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer

    Ask Lasest Price
    Brand Name : CHUSHENG
    Model Number : CSC20190809
    Certification : CCC, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Unit/Units per Month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer

    3 Axle 42m³ Stainless Steel Jet Crude Oil Tanker Fuel Tank Trailer

    Product Description

    1.Introduction of fuel tanker semi trailer

    Fuel tank trailers Mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage.
    Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trailers from 20000 liters to 70000 liters. Such as oil tank trailer, fuel tanker trailer, heavy oil tank trailer, fuel oil tank trailer, liquid tanker trailer, gallon fuel tank trailer, diesel oil tank trailer, oil transportation tank trailer, fuel tank cap trailer, etc. And also support Customized.

    2.Countries which we exporting fuel tanker semi trailer

    Africa and Asia are the two major exporting regions of our's. We mostly export our product to the following countries:

    Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.

    3.Advantages of our fuel tanker semi trailer

    • Our company Xiagong Chusheng (Hubei) Special Purpose Vehicle Manufacturing Co., Ltd. has been manufactured fuel tanker semi trailer for decades and our products contain all kinds of special trucks.
    • Our company possesses some advanced technologies and mature craftworks.
    • fuel tanker semi trailers made by us have high quality and low price.
    • We can supply you with more than 20 types of fuel tanker semi trailers from 20000 liters to 70000 liters. Such as oil tank trailer, fuel tanker trailer, heavy oil tank trailer, fuel oil tank trailer, liquid tanker trailer, gallon fuel tank trailer, diesel oil tank trailer, oil transportation tank trailer, fuel tank cap trailer, etc. And also support Customized.

    Product Parameter

    Main Dimensions
    Overall Length 11000mm
    Overall Width 2500mm
    Overall Height 3680mm
    Tare Weight 7500KGS
    Loading Capacity 35m3
    Photo only for reference, final product can be made according to exact requirements
    Tank Body
    Shape Mono block Cylinder
    Total Volume(m3) 35 CBM
    Tanker Body Material 5mm stainless steel
    End plate 6mm stainless steel
    Lifting Ladder Including Top walkway and backside steel material
    Manhole cover 2 manhole covers, DN500mm 2 sets with 2 breather valves
    Bottom Valve 1 sets of API Pneumatic Bottom Valve
    Top Safety Rail 1 Set
    Discharging valve 2 set DN100mm discharging valves
    No. of Compartment 2
    Discharging Pipe 4”rubber hose, 2 pc, 6m long
    Chassis
    Main Beams Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
    Axle 3 axles
    FUWA 13 Ton
    Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
    King Pin JOST brand 2” bolt-in king pin
    Suspension German design heavy duty mechanical suspension
    Pneumatic Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
    Wheel rim 9.00-22.5 wheel rim, 13 pieces including one spare
    Tire 12R22.5 tubeless tire with one spare tire, 13 pieces
    Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
    Accessories One standard tool box

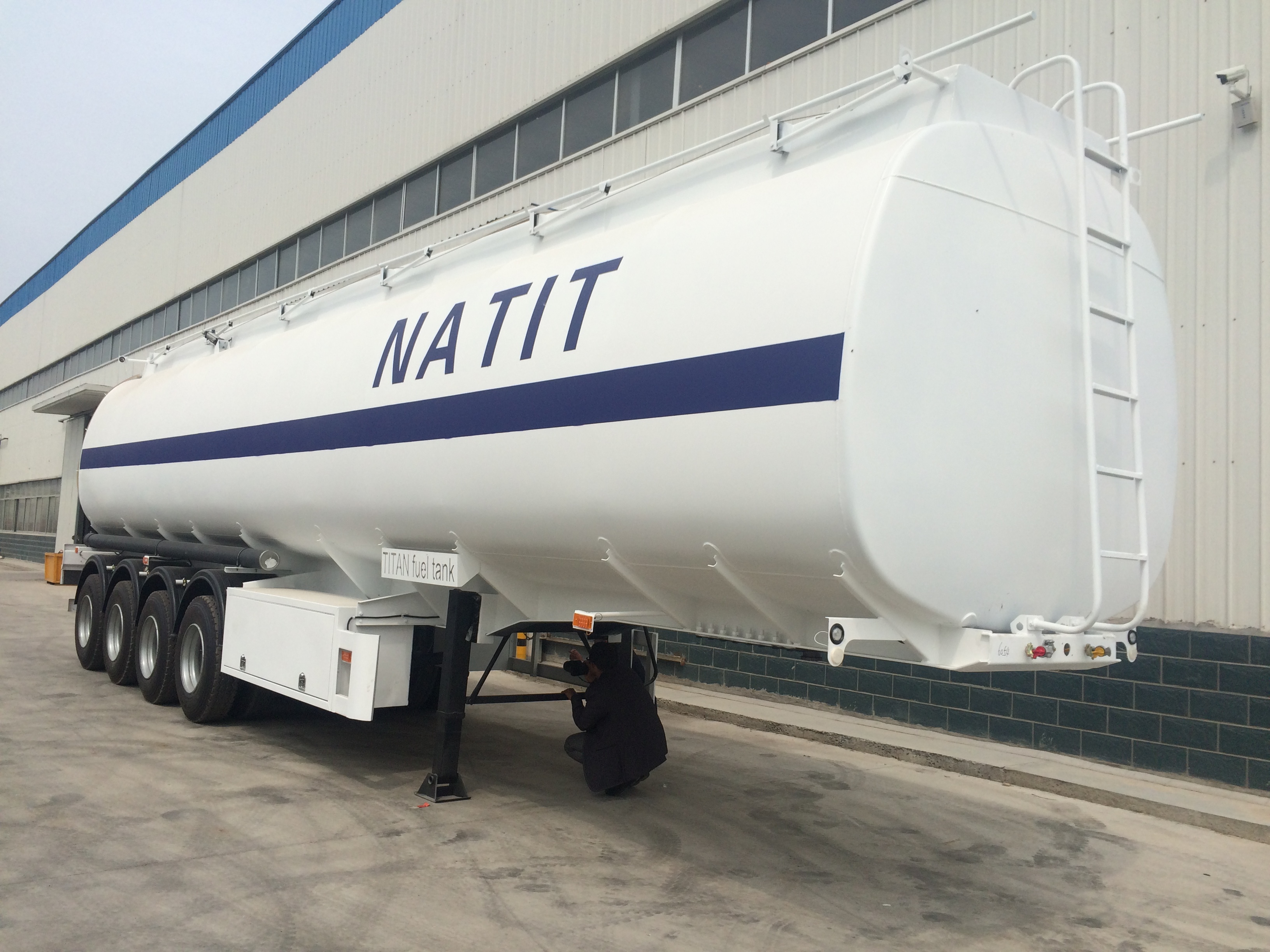

    Product Picture

    35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer35 Ton 42m³ Stainless Steel Jet Crude Oil Tanker / Fuel Tank Trailer
