    HOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B Material

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : HOWO
    Certification : ISO CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 Unit/Units per Month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    HOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B Material

    HOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B Material

    Product Description

    1) Material selection/Material: WISCO Q345 low alloy steel is used to make the mixer tank blades. Shanghai Baosteel B520JJ or QSTE420TM alloy steel can also be selected for customer requirements.
    2) Cutting: All the company's sheet cutting, need to be programmed into the CNC plasma flame cutting machine for cutting and cutting. High efficiency and high precision in the blanking process
    3) Cylinder production: There are three key process requirements for mixing car body: one is concentricity, the other is strength, the surface and helix angle of the three cylinder blades
    1. Concentricity. Our Company's mixing car body adopts the special “mixing car body splicing tooling”, which effectively guarantees the concentricity of the cylinder through the clamping position of the mixing cylinder flange, head, raceway and barrel connection.

    2. Strength. The strength of the tank is mainly guaranteed by the welding process. The company uses automatic welding machine to carry out the ring seam of the tank, the welding of the longitudinal seam, and the welding consumables use the welding wire of a well-known brand.

    3. The barrel of the cylinder. The barrel blades are the more critical components of the mixer truck. There are two symmetrically distributed logarithmic spirals in the body of the mixing car. The blades are designed in different sections of the cylinder to have different helix angles, pitches, elevations and chamfers, and eliminate the blades and the wall. The dead angle of the joint can realize three-dimensional space agitation; the feeding and discharging speed is fast, the concrete homogeneity is good, the yield rate is high, and no material is accumulated. The three main technical performance indicators of feed rate, discharge speed, concrete homogeneity and yield rate exceeded the national regulations.

    Product Parameter

    Concrete mixing capacity 8cbm 10cbm 12cbm 14cbm
    Cabin

    Standard Cab, left or right hand drive

    With two bunks, 70° hydraulically tillable to the front

    Vehicle Main Dimensions

    (L x W x H)mm

    9400x2500x3920 9600x2500x3950 9850x2525x3950 10500×2496×3980
    Wheel base (mm) 3625+1350 3825+1350 4025+1350 1800+3200+1350

    Wheel track

    (front/rear) (mm)

    1500/2725 1500/2365 1550/2915 1500/2380
    Approach/Departure angle(°) 16/15 19/22 25/13 16/19
    Tare Weight 13700 14500 15300 16500
    Loading Capacity 27300 26500 25700 33500
    Front axles loading capacity HF9 1x9000 HF9 2x9000
    Rear axles loading capacity HC16 2x16000
    Engine Brand Weichai
    Model WD615.47
    Type 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

    Horse Power

    (HP)

    371HP

    Emission

    standard

    Euro
    Gearbox HW19710 , 10 forwards & 2 reverse
    Clutch Reinforced diaphragm clutch, diameter 430mm
    Steering Gear ZF 8118,power steering, hydraulic steering with power assistance
    Fuel tank (L) 300
    Tire 12R22.5 tubeless tire , 10 pieces with one spare total 11 pieces.
    Brakes

    Service brake: dual circuit compressed air brake

    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

    Auxiliary brake: engine exhaust valve brake

    Mixing tank material 16MnQ345
    Thickness for end plate 8mm
    Thickness for mixer body 6mm
    Feeding Speed (m3) ≥3
    Discharging Speed (≥m3) ≥2
    Leftover Rate Nearly Zero
    Max Rotating Speed (r/min) 14---16
    Driving System Speed Reducer Italy brand PMP
    Hydraulic Pump Italy brand PMP
    Hydraulic Motor Italy brand PMP
    Water Tank Capacity (L) 400

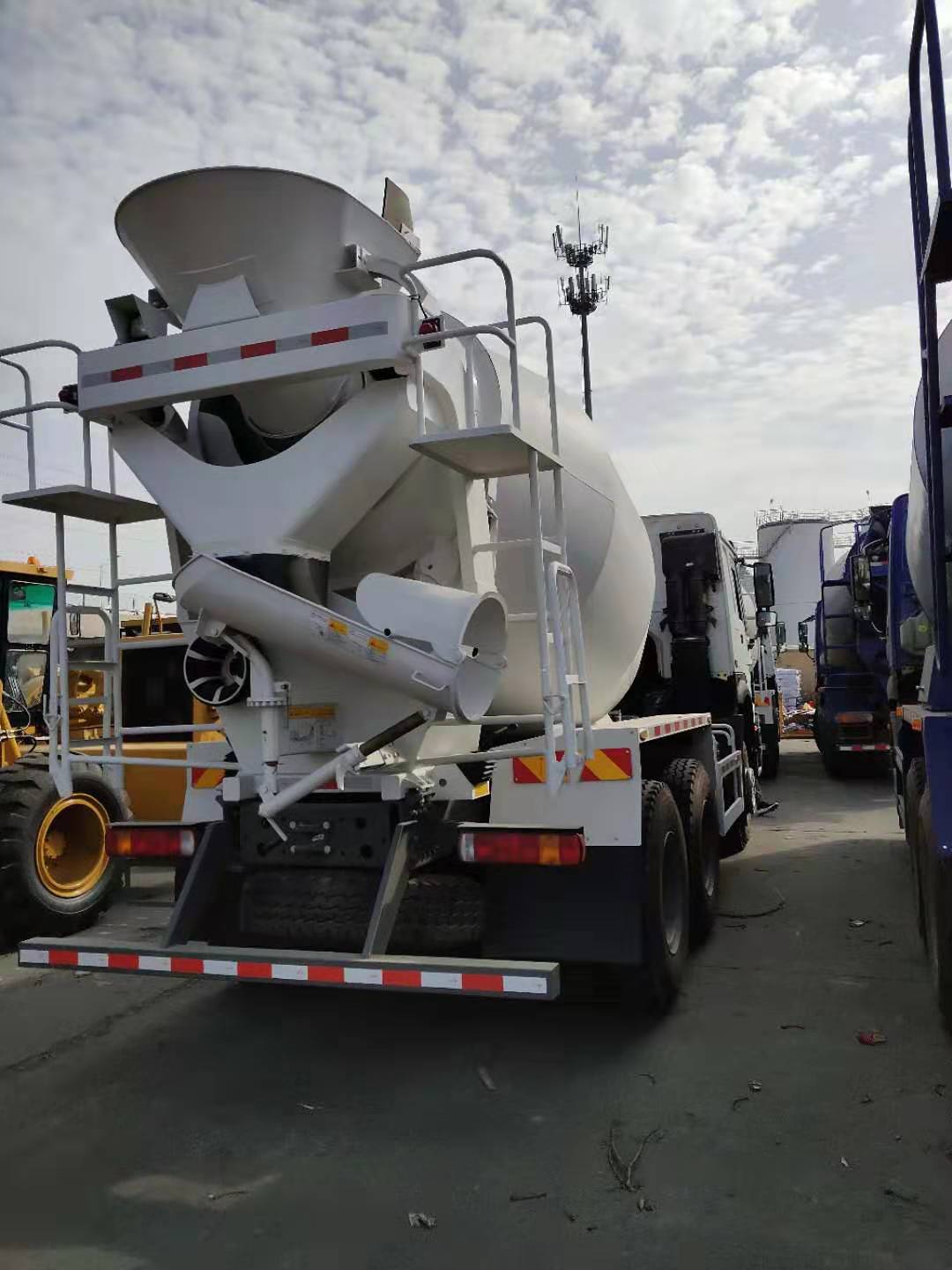

    Product Picture

    HOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B MaterialHOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B MaterialHOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B MaterialHOWO Diesel Self Loading 10 Cubic Meters 6×4 Concrete Mixer Truck With Q345B Material
