    XCMG HDD XZ320E Horizontal Directional Drill Machine With 2140mm Tread

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XZ320E
    Certification : ISO/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Unit/Units per Month
    Delivery Time : 35-40 work days
    • Product Details
    • Company Profile

    XCMG HDD XZ320E Horizontal Directional Drill Machine With 2140mm Tread

    XCMG HDD XZ320E Horizontal Directional Drill Machine With 2140mm Tread

    Product Description

    1, Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
    2, Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
    3, High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
    4, Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes, ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
    5, Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices, can also be optioned more eco saving Dongfeng Cummins with EU Stage ⅢA.

    High rotation speed of power unit: The power unit can keep a high rotation speed even though the drilling rig does not decrease its rotating torque and pulling force for pipe paving, so that the high pipe paving efficiency of drilling rig is ensured.

    Dual-speed power unit: The low drilling and pulling speed ensures the successful construction. The power unit can accelerate the sliding speed after the drill stem is removed, so that the auxiliary work time is reduced and the work efficiency is enhanced.

    Rubber crawler: The influence of this kind of crawler on the road, lawn and sight spot is smallest.

    Simple drill stem loading and unloading device: It is helpful to reduce the auxiliary work time and the work intensity of operators.

    Floating vice: The proprietary floating vice of the Company shall be adopted, which can prolong the service life of drill stem effectively.

    Rotary console: It enlarges the vision filed of operators, reduces their work intensity and makes the drilling rig easier and more comfortable to operate.

    Easy maintenance: The reasonable design of engine cap makes it easy to maintain the engine and change the filter element of hydraulic system.

    Reasonable system configuration: The rotating, pushing and pulling of power unit and slurry are driven by different and independent hydraulic pump. The hydraulic pump, valve and pipeline are reasonably arranged, minimizing the energy loss.

    Wide applicability: The engine is turbocharged so it can boost its power instantly in case of complex ground condition so as to ensure the strong operating power.

    Auxiliary booster: The special auxiliary booster can increase the maximum pipe pulling force to 40t so that the work risk is reduced effectively.

    Product Parameter

    Description Unit Parameter value
    Engine Manufacturers -----
    China III Model QSB5.9-C210
    Rated Power kW /(r/min) 154 / 2200
    China II Model 6BTAA5.9-C205
    Rated Power kW /(r/min) 153/ 2200
    China III Model QSB6.7-C220
    EU Stage IIIA Rated Power kW /(r/min) 164/2200
    Thrust-Pull Type Pinion and rack drive
    Max thrust-pull force kN 345/345
    Max thrust-pull speed m/min 36
    Rotation Type four motor
    Torque N·m 12600
    Max spindle speed r/min 140
    Loader Crance / /
    Max inclination angle ° 20
    Pipe Diameter × Length mm×mm Φ73×3000
    Mud pump Max Flow rate L/min 320
    Max pressure MPa 8
    Weight kg 10500

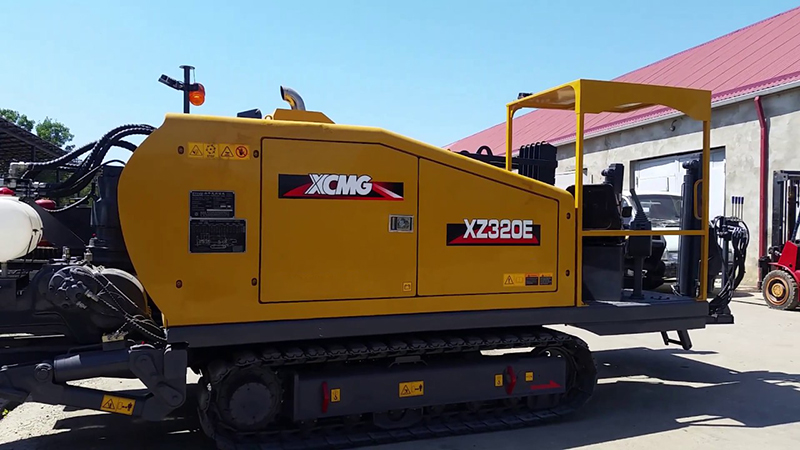

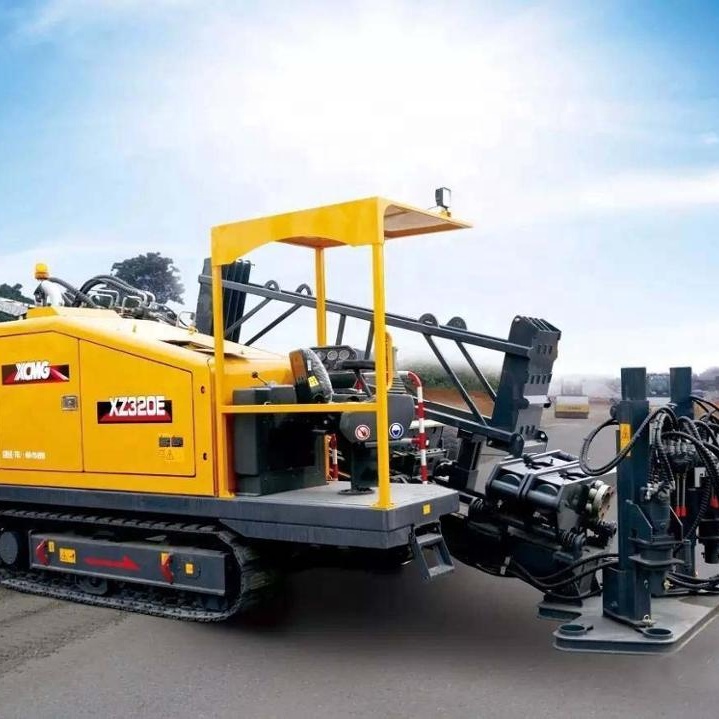

    Product Picture

    XCMG HDD XZ320E Horizontal Directional Drill Machine With 2140mm TreadXCMG HDD XZ320E Horizontal Directional Drill Machine With 2140mm TreadXCMG HDD XZ320E Horizontal Directional Drill Machine With 2140mm Tread
