    FAW 10 Wheels Hazardous Chemical Tanker Truck With CA1250PK2L5T3BE5A80 Chassis

    Ask Lasest Price
    Brand Name : FAW
    Model Number : CA5257G
    Certification : CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    FAW 10 Wheels Hazardous Chemical Tanker Truck With CA1250PK2L5T3BE5A80 Chassis

    FAW 10 Wheels Hazardous Chemical Tanker Truck With CA1250PK2L5T3BE5A80 Chassis


    Product description


    Chemical Tanker , is also called Chemical tank truck, chemical truck, mainly used in carrying and storing chemical medium and materials which is acid, alkali, salt, mellow, aldehyde. Moreover, it widely applied in chemical industry, metallurg, environment section, brewage industry, edible industry, pharmacy industry and transportation enterprises which involved above liquid r solid material.

    1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.

    2. Tank materials: Optional for carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
    3.Tank shape: Optional for round square, oval, and round;
    4. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
    5.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.

    Product notes


    1. FAW 6×4 chassis, 230hp, Euro 3 or Euro 4, LHD or RHD
    2 Tank volume: 15000L

    3. Factory direct sale

    4. Tank materials: carbon steel, carbon steel tank lined with plastic,stainless steel, PP and Aluminum, etc


    Product parameter


    Vehicle Main DimensionsCab typeFAW mid-long cab,single sleeper, and an A/C
    Overall dimension(L×W×H)(mm)11000X2500X3400
    Axle number3
    Drive type6*4
    Steering typeLHD/ RHD with ZF8098 hydraulic power steering
    Max. Drive Speed (km/h)80
    Curb weight (kg)25000
    Loading Capacity(kg)/(L)15000L
    Chassis parameterChassis ModelCA1250PK2L5T3BE5A80
    Chassis manufacturer:FAW
    Front/ rear Axle load(Kg)6750/6750/11500
    BrakesService brake: dual circuit compressed air brake
    Tire6 units of 10.00-20,10.00R20
    Engine parameterBrandFAW
    ModelBF6M2012
    Fuel typeDiesel
    Horse Power(kw)/(hp)165KW/230HP
    Displacement(ml)6060ml
    Emission StandardEuro3
    Superstructure parameter1. Tanker material:4-6mm carbon steel, stainless steel,aluminium alloy and pure aluminum cans(according to different requirements)
    2. Separate parts for different chemicals,out and in through pump,self-flow.Optional equipment:flowmeter,computer tax-controlled tankers,15m TLJP(self-return), emergency shutdown device.Multichannel wave plate in tanker.
    3. Equipped with self-priming pump,gear pump,double pump.

    Packing


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.We have professional forwarding partners.

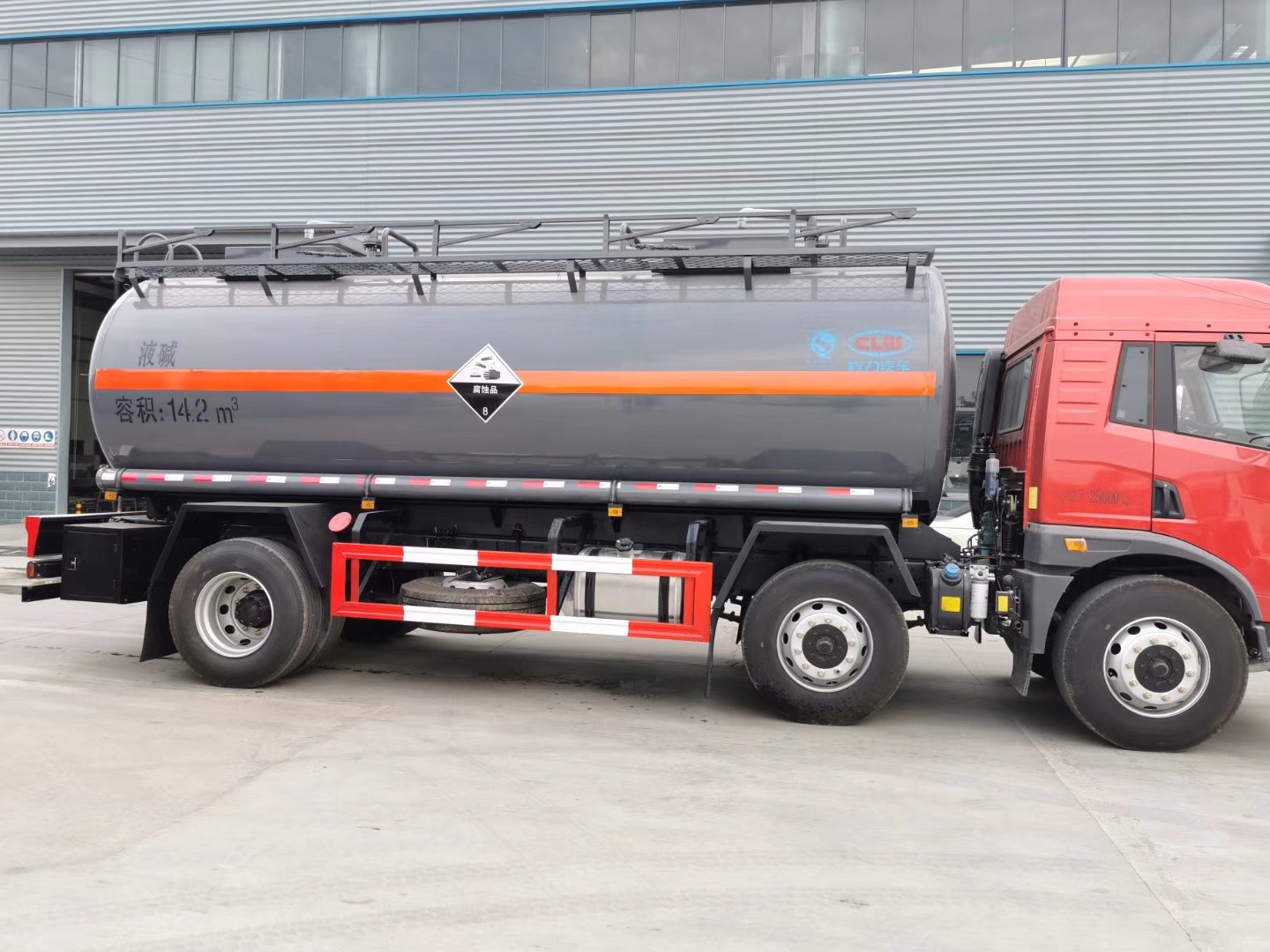

    Product photos


    Product Tags:

    fuel tanker trucks



    oil tanker truck


    Quality FAW 10 Wheels Hazardous Chemical Tanker Truck With CA1250PK2L5T3BE5A80 Chassis for sale
