    371/336 hp 6x4 10 Wheeler Heavy Duty Dumper / Large Tipper Truck ZZ3257N3447A

    Ask Lasest Price
    Brand Name : SINOTRUCK
    Model Number : ZZ3257N3447A
    Certification : CCC/ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000UNITS/MONTH
    Delivery Time : 30-45 Work days
    • Product Details
    • Company Profile

    371/336 hp 6x4 10 Wheeler Heavy Duty Dumper / Large Tipper Truck ZZ3257N3447A

    ZZ3257N3447A HOWO 371/336 hp 6x4 10 wheeler Heavy Duty Dumper/Tipper Truck


    Product Description


    According to clients' requirements, we can customize different loading capacity and volume.

    The popular dump truck models include: sinotruck HOWO 336hp 6X4 10 wheeler 16 cubic meters dump truck, sino truck 371hp ten wheeler 20 cubic meters dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so on.


    Detailed Specification


    SINOTRUK HOWO 6x4 DUMP TRUCK MAIN SPECIFICATIONS
    ChassisModelZZ3257N3247AZZ3257N3447AZZ3257N3647AZZ3257N3847A
    CabModelHW76 NEW face , Left Hand Drive, RHD is optional
    Detailed InformationHw76 cabin, single sleeper, all-steel forward control, 70° hydraulically tillable to the front, 2-arm windshield wiper system with three speeds,laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo ratio/cassette recorder, safety belts, adjustable steering wheel, air horn, airconditioner, with 4-point support fully floating suspension and shock absorbers.
    EngineModelWD615.62WD615.87WD615.69WD615.47
    Power266 hp290 hp336 hp371 hp
    KW/rpm196/2200213/2200247/2200273/2200
    Displacement9.726 L
    TransmissionHW13710/HW19710 ( 10 forward , 2 reverse , with direct connect PTO )
    Front AxleHR9 (Drum Braking) Max.loading:9000 kg
    Rear AxleHC16 (Drum Braking) Max.loading:16000 * 2 kg Ratio : 4.8/5.73
    SteeringZF8118,hydraulic steering with power assistance
    Braking SystemService brake: dual circuit compressed air brake
    Parking brake:spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust brake
    Electrical SystemOperating voltage:24 V, negative grounded
    Starter:24 V,5.4Kw
    Alternator:3-phtase,28 V,758 W
    Batteries:2×12 V,135Ah
    Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
    Wheel TyreTyres: 12.00R20 raidial tyreOption: 315/80R22.5,295/80R22.5,12.00-20
    Body Dimension(mm)4800x2300x12005200x2300x14005600x2300x14005800x2300x1400
    Body Shaperectangle shape/ U shape / volve shape / mining body
    Hydraulic Cylinderventral tipping / front tipping
    Thickness of BodyFloor 8 / 10 mmSide 8 / 6 / 4 mm

    Export Market


    Africa:

    Egypt, Sudan, Libya, Tunisia, Algeria, Morocco, Azores, Madeira, Ethiopia, Eritrea, Somalia, Djibouti, Kenya, Tanzania, Uganda, Rwanda, Burundi and Seychelles, West Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d’Ivoire, Ghana, Togo, Benin, Niger, Nigeria and Canary Islands, Chad, Central Africa, Cameroon, Equatorial Guinea, Gabon, Congo, Democratic Republic of the Congo, Sao Tome and Principe, Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, Namibia, South Africa, Swaziland, Lesotho, Madagascar, Como Luo, Mauritius, Reunion, St. Helena, etc.


    South America:

    Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda


    South Pacific:

    Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.


    Asia countries:

    North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.

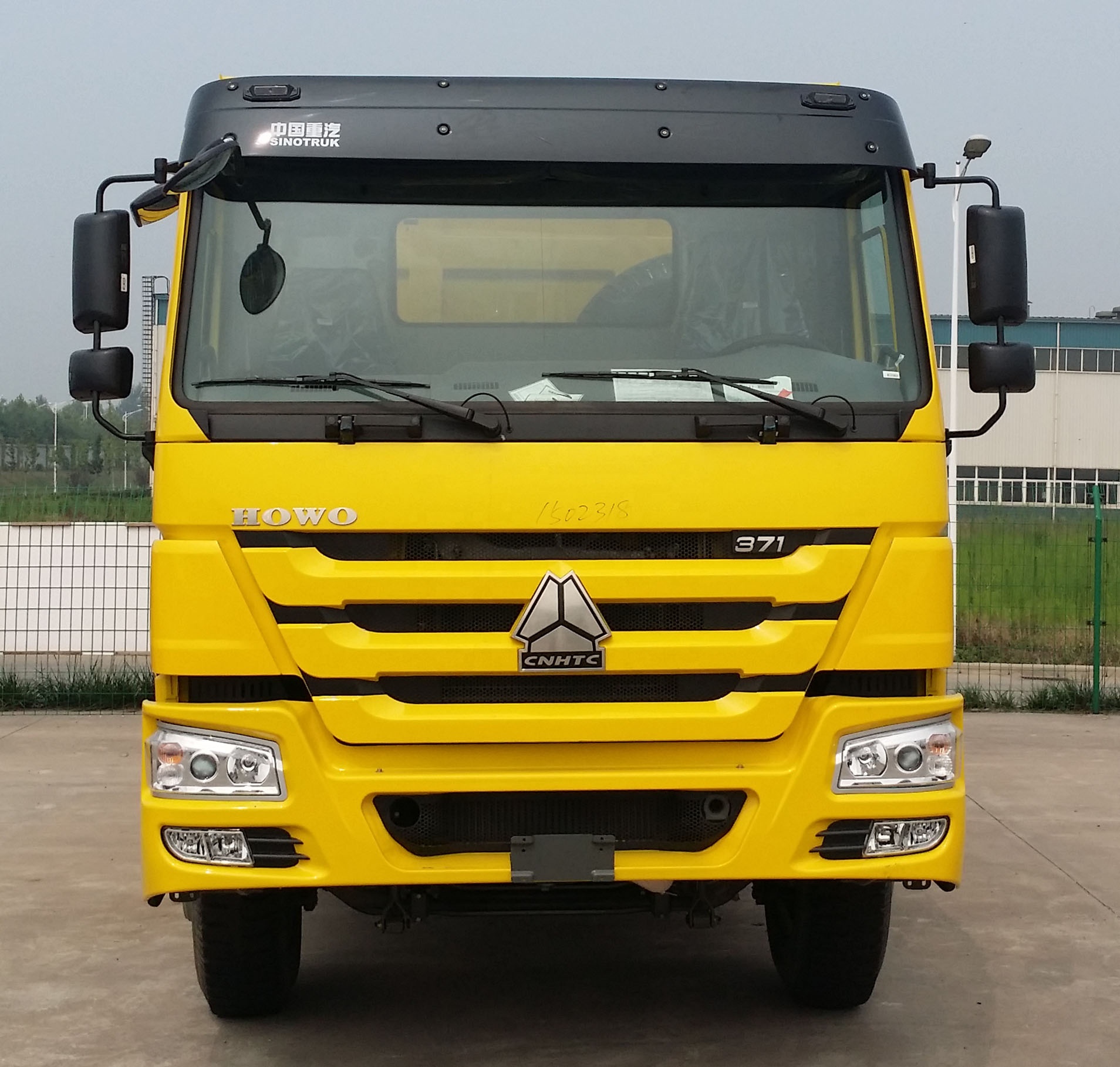

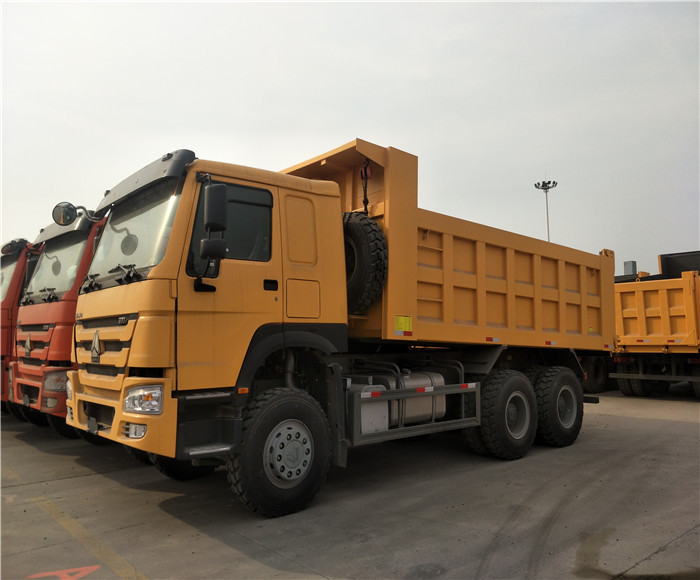

    Products Photos



    Quality 371/336 hp 6x4 10 Wheeler Heavy Duty Dumper / Large Tipper Truck ZZ3257N3447A for sale
