    High - Drive Hydraulic Tractor Pipe Layer Shantui SP25Y 25T Crawler Pipelayer 120KW

    Ask Lasest Price
    Brand Name : SHANTUI
    Model Number : SP25Y
    Certification : CCC/ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 5000 UNITS/Month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    High - Drive Hydraulic Tractor Pipe Layer Shantui SP25Y 25T Crawler Pipelayer 120KW

    SHANTUI SP25Y 25T Multifunctional Crawler Hydraulic pipe layer tractor With CE for lifting pipe Special purpose


    Description


    SINOTRUCK brand SPY25 high-drive crawler pipelayer is a new type of crawler-type hydraulic pipelayer developed by our company to track the development trend of international pipelayers, based on domestic and international market demand and based on modular design concept. The whole machine is composed of a high drive chassis, a counterweight mechanism, a boom operating device and a hydraulic system. The chassis breaks through the traditional crawler pipelayer design method, and the drive sprocket is separated from the walking frame, and is arranged to the final drive and steering. On the same axis of the brake clutch and the central drive, the track is arranged in a triangle, eliminating the impact load directly transmitted from the ground to the drive sprocket, which increases the service life of the drive system by 30%. The modular design of the transmission components makes the assembly simple and more Easy to disassemble and repair. The counterweight mechanism adopts four-bar linkage mode, and the coupling frame adopts multi-axis articulation and dynamic gap balance adjustment structure, which ensures the accuracy of the four-link movement and is convenient for disassembly and assembly to meet transportation requirements. The boom adopts A-shaped single-arm frame structure, and its lifting, variable amplitude and weight-receiving are realized by hydraulic drive and pilot control. The operation is convenient and flexible, the micro-motion performance is good, and the work is stable. The whole vehicle is equipped with various safety devices such as computer torque limiter, anti-tip protection frame and counterweight safety lock to ensure the safety and reliability of the whole machine operation.


    Product Features


    Delivering ultimate power,lift and value,the SP25Y features a Cummins engine,load feedback,overload prevention,anti-rollover protection and precise controls,Our fist offering for larger loads.


    Technical parameters


    ModelSP25YSP45YSP70YSP90Y

    Weight

    and

    dimensions

    Operating weight22000 kg34000 kg49500 kg55000 kg

    Maximum

    lifting weight

    25000 kg45000 kg70000 kg90000 kg
    Track shoe width560 mm610/660mm760 mm860 mm

    Minimum

    turning radius

    2950 mm3200 mm3950 mm3950 mm
    Ground length2635 mm3050 mm3620 mm3620 mm
    Ground clearance400 mm400 mm485 mm550 mm
    Service refillFuel tank capacity300 L440 L550 L550 L

    Hydraulic tank

    capacity

    148 L180 L196 L196 L
    Engine oil45 L45 L45 L45 L
    Cooling system62.8 L79 L121 L121 L
    EngineRated power120 kW169 kW235 kW257 kW
    Model

    Shangchai

    SC11CB184G2B1


    Weichai

    WD10G178E25

    Cummins

    NT855-C280S10

    Cummins

    NTA855-C360S10

    Cummins

    NTA855-C360S10

    Piston

    displacement

    9.7261 L14 L14 L14 L

    Stroke—

    bore × stroke

    6—

    126 × 130 mm

    6-

    139.7 × 152.4 mm

    6—139.7 × 152.4 mm6—139.7 × 152.4 mm
    Rated revolution1850 rpm2000 rpm2000 rpm2000 rpm

    Transmission

    system

    Type

    Hydraulic

    transmission

    Hydraulic

    transmission

    Hydraulic

    transmission

    Hydraulic

    transmission

    Hydraulic torque

    converter

    3-element, 1 stage,

    1 phase

    3-element, 1 stage,

    1 phase

    3-element, 1 stage,

    1 phase

    3-element, 1 stage,

    1 phase

    Transmission

    Planetary gear,

    forced lubrication

    power shift

    Planetary gear,

    forced lubrication

    power shift

    Planetary gear,

    forced lubrication

    Planetary gear,

    forced lubrication

    Number of track

    rollers (each side)

    7799

    Number of carriers

    (each side)

    2222

    Travel speed 1st

    (forward/reverse)

    3.29/4.28 km/h3.8/4.9 km/h3.7/4.5 km/h3.6/4.4 km/h

    Travel speed 2nd

    (forward/reverse)

    5.82/7.59 km/h6.8/8.5 km/h6.8/8.2 km/h6.6/7.8 km/h

    Travel speed 3rd

    (forward/reverse)

    9.63/12.53 km/h9.63/12.53 km/h9.63/12.53 km/h-
    Working pumpTypeDuplex pumpDuplex pumpDuplex pumpDuplex pump

    Displacement

    of large pump

    100 ml/r116 ml/r201.49 ml/r225 ml/r

    Displacement

    of small pump

    10 ml/r10 ml/r10.16 ml/r201 ml/r

    Rated working

    pressure

    18 MPa18 MPa20 MPa21 MPa

    Pipelaying

    equipment

    Boom Length5500 mm(6100 mm)6500 mm(7500 mm)7300 mm(9000 mm)8600 mm
    Max.lifting height4400 mm5250 mm6550 mm7000 mm

    Boom swing

    amplitude

    1220~5400 mm1220~6650 mm1200~7200 mm1200~7200 mm
    Boom Line speed0~12 m/min0~6 m/min0~6 m/min6 m/min
    Gradeability20°20°20°20°
    Ground press0.07 MPa0.086 MPa0.086 MPa0.0866 MPa

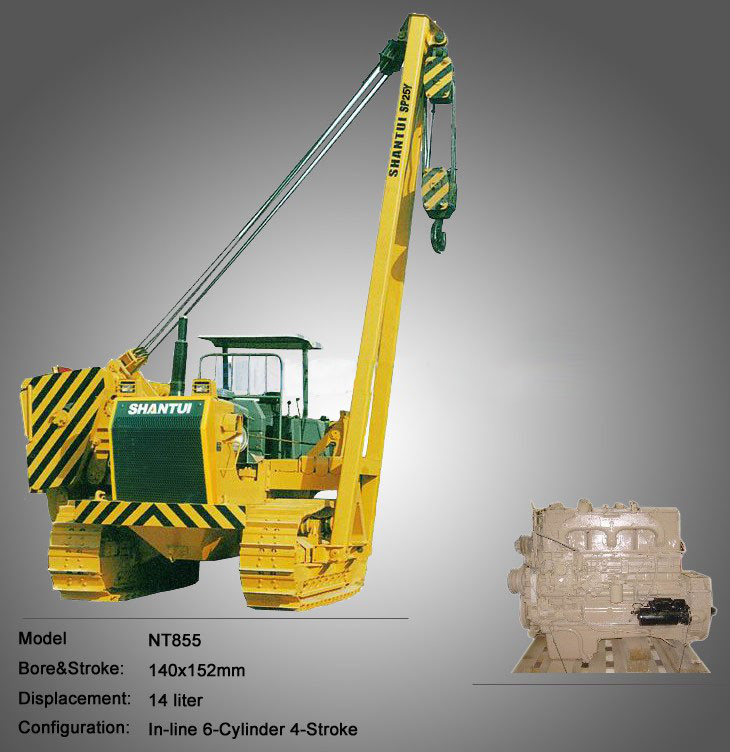

    Product Picture
