    XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XR150D
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 set/month
    Delivery Time : 10-30days
    • Product Details
    • Company Profile

    XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty

    XCMG Official Manufacturer XR180D Mobile Rotary Drilling Rig Rock Drilling Machine


    Product Quick Details


    Condition:New

    Type:Rotary Drilling Rig

    Power Type:Diesel

    Place of Origin:Jiangsu, China

    Brand Name:XCMG

    Usage:Ore

    Voltage:220V/380V

    Dimension(L*W*H):8350*4200*20480mm

    Weight:58000kg

    Certification:CE/ISO9001

    Warranty:1 Year

    After-sales Service Provided:Field installation, commissioning and training

    Engine model:CUMMINS QSB6.7

    Max. Drilling Depth:46m

    Moving Type:Crawler

    Rotary table slewing angle:360°


    Product Features:


    1,With the special hydraulic telescopic crawler chassis (TDP series) ofrotary drill rig and large diameter slewing bearing, it meets strong stabilityand easy transportation.

    2,With the electronically controlled and turbocharged engine of Cummins,which is powerful and emissions meet Eurostandards.

    3,The hydraulic system adopts the limit of power control and positive flowcontrol, that makes the hydraulic system more energy and efficient.

    4,With the single rope main winch, it efficiently solves the problemof wire rope wear, and improves the service life of wire rope; a detectiondevice of drilling depth on the main winch, and single rope makes deepinspection more accuracy.

    5,The design of whole machine meets the requirements of the CEdirective, that guarantees safety, and construction safer.

    6,Configure centralized lubrication system, which makes maintenancemore convenient.

    7,Selection of a variety of specifications for Kelly-bar, meeting the efficient construction ofdifferent strata.

    8,Multi-function such as crowd winch,spin-offof rotary drive,casing driver and hydraulic casingoscillator is optional selected.

    9,The removable type key. Of rotary drive makes maintenance andexchange more convenient.

    It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.

    The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users.

    Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.

    It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.


    Product Specification:

    DescriptionUnitParameter value
    Max. drilling diametermm1800
    Max. drilling depthmstandard configuration
    (5-section friction Kelly bar)46
    optional configuration
    (4-section-locking Kelly bar)
    Allowable luffing scope (from center of drill rod to slewing center)mm3560~3900
    Drilling rig dimension in working condition (L*W*H)mm8350*4200*20480
    Drilling rig dimension in transport condition (L*W*H)mm14255*3000*3455
    Weight of overall unit (standard configuration, excluding drilling tool)t58
    EngineModelCUMMINS QSB6.7
    Rated power/speedkW194/(2200r/min)
    Max. working pressure of hydraulic systemMPa35
    Rotary driveMax. torquekN.m180
    Rotational speedr/min7~27
    Crowd cylinderMax. Pushing forcekN160
    Max. Pulling forcekN180
    Max. strokemm5000
    Main winchMax. pulling forcekN180
    Max. single-rope speedm/min65
    Diameter of the steel wire ropemm180
    Auxiliary winchMax. pulling forcekN50
    Max. single-rope speedm/min70
    Diameter of the steel wire ropemm16
    Drilling mastLeft/right inclination of mast°3/3
    Front/back inclination of mast°5/15
    Rotary table slewing angle°360
    TravelingMax. traveling speed of the overall unitkm/h1.5
    Max. climbable gradient of the overall unit%35
    CrawlerWidth of crawler platemm700
    External width of crawler (min.-max.)mm2960~4200
    Center distance between two longitudinal wheels of crawlermm4270
    Average ground pressurekPa94

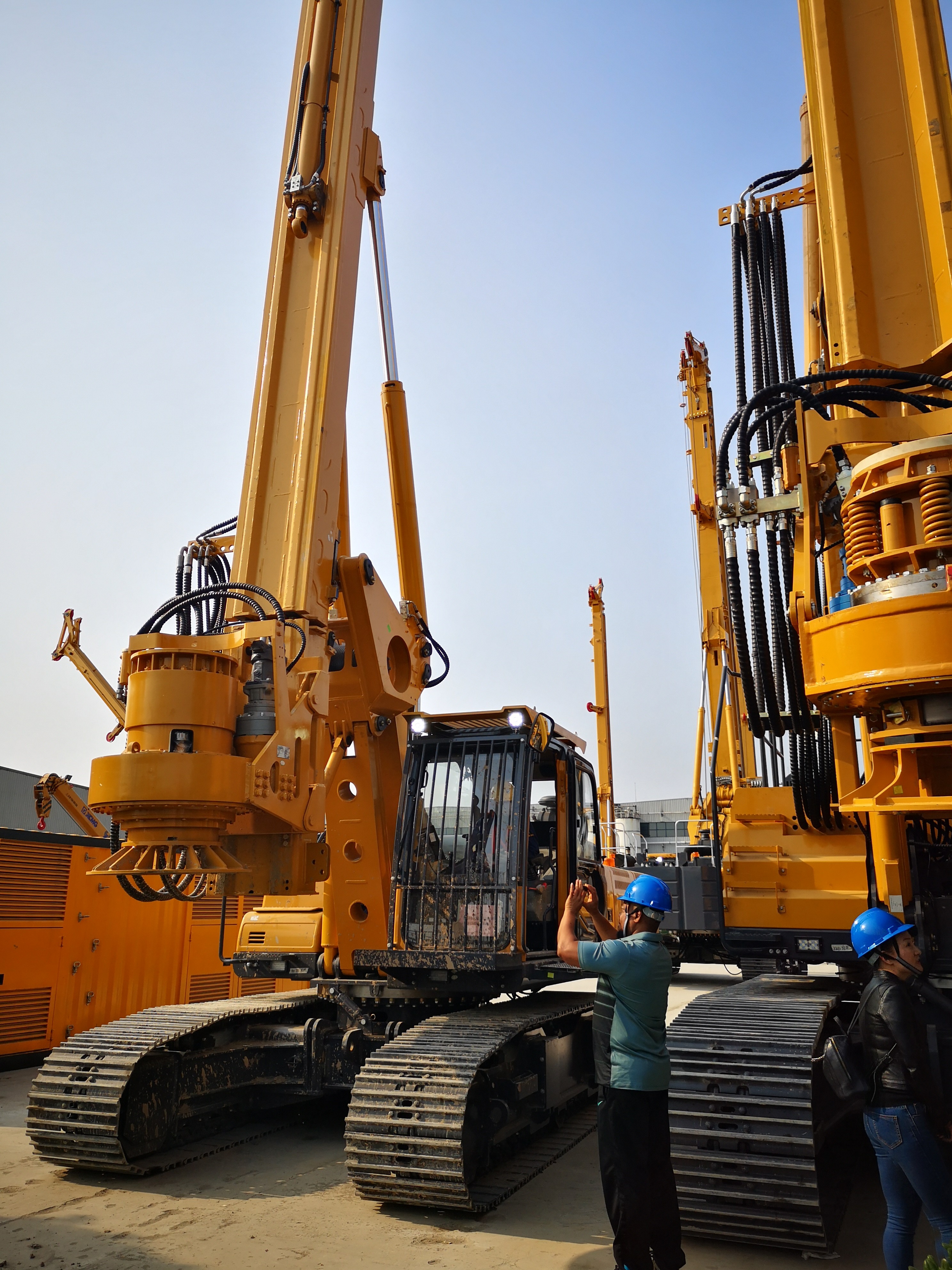

    Pictures

    XR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year WarrantyXR180D Pile Drilling Machine / Mobile Rotary Drilling Rig 1 Year Warranty
