Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3

    Buy cheap Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3 from wholesalers

    Buy cheap Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3 from wholesalers
    • Buy cheap Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3 from wholesalers
    • Buy cheap Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3 from wholesalers
    • Buy cheap Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3 from wholesalers

    Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3

    Ask Lasest Price
    Model Number : CLW5161ZYS
    Certification : ISO9001 CCC ISO14001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000/month
    Delivery Time : 15-45days
    • Product Details
    • Company Profile

    Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3

    New condition SINOTRUK 9cbm 12cbm 7cbm Rear Loading Compactor Garbage Truck With 1.2cbm Rubbish Bin

    Quick details

    Engine Capacity:4500ml
    Gross Vehicle Weight:15800
    Warranty:1 Year
    After-sales Service Provided:Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
    Condition:New
    Drive Wheel:4x2
    Type:Compactor
    Transmission Type:Manual
    Emission Standard:Euro 3
    Fuel Type:Diesel
    Size:8790*2500*3200
    Place of Origin:Hubei, China
    Certification:ISO9001 CCC ISO14001
    Volume:6001 - 10000L
    Chassis Brand:DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
    Product name:rear loading garbage trucks
    Color:Optional
    Driving Type:LHD OR RHD
    Truck type:Compactor Rear Loader Recycling Roll
    Engine type:Dongfeng Chaoyang Diesel Co
    Engine power:180HP
    Engine:Cumins.WeiChai.Yuchai.Japanese

    Product features


    As a professional garbage waste truck manufacturer in China, we have garbage dump truck, garbage compactor truck, swing garbage truck, hook lifter garbage truck,etc.


    1. At present Our Truck with Euro 2, Euro 3 and Euro 4 Emission Standards;
    Drive model:4*2,6*4;
    Brand with Dongfeng, JMC,Qingling 1SUZU, JAC, Foton ,IVECOand etc.


    2. Cab: Single row OR Single row with sleeper(rated passengers:2-3)
    Steering control:Left Hand Dive/Right Hand Drive


    3. Capacity:3CBM-20CBM

    4 .The truck compacts the waste by hydraulically powered mechanism, by the use of hydraulics, the barrel is locked during the overturning process, which is very safe and reliable

    Paremeters

    Item No.Parameters
    Overall Dimension10290x2496x3270 mm
    Gross Vehicle Weight25000 kg
    Curb weight13650 kg
    Loading capacity16000-20000 kg
    Wheel Base4600+1350
    Front axle loading capacityHF9, 1x9000 kg
    Rear axle loading capacityST16, 2x16000 kg
    Max Driving Speed75 km/h
    EngineWD615.87, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Engine horsepower290 HP
    Emission StandardEuro II
    Displacement9.726L
    Gear BoxHW19710, 10 Forwards gear & 2 reverse gear
    Steering GearZF 8098, power steering, hydraulic steering with power assistance
    ClutchReinforced diaphragm clutch, diameter 430mm
    Fuel Tank400L Aluminum alloy fuel tank
    CabinHOWO 76 Standard Cab, RHD, Right Hand Drive; Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front.
    Tire12R22.5 Tubeless Tire , 10 pieces with one spare
    Brake

    Service brake: dual circuit compressed air brake

    Parking brake: spring energy, compressed air operating on rear wheels

    Auxiliary brake: engine exhaust valve brake

    Equipment

    1. Garbage body: 20m3.

    2,Equipped with hermetic dustbin, hydraulic system and operating system

    3, Automatic compress and uninstall, sewage can be collected by the dump tank.

    4. Cycling time<14--18s

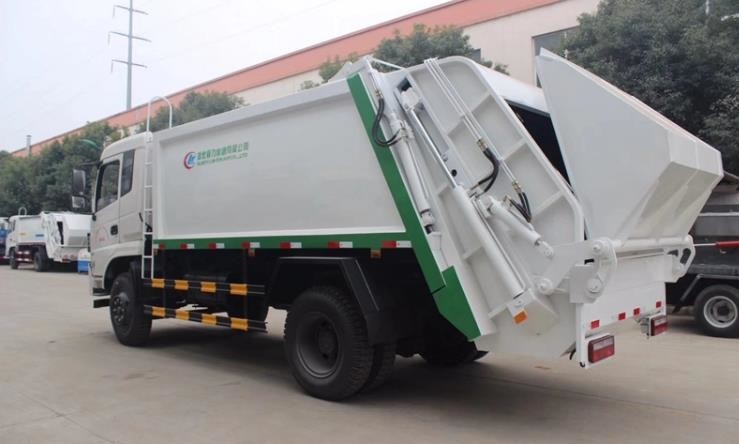

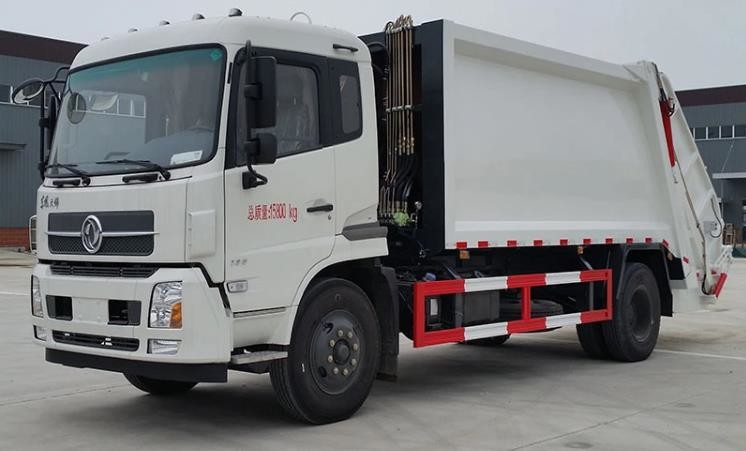

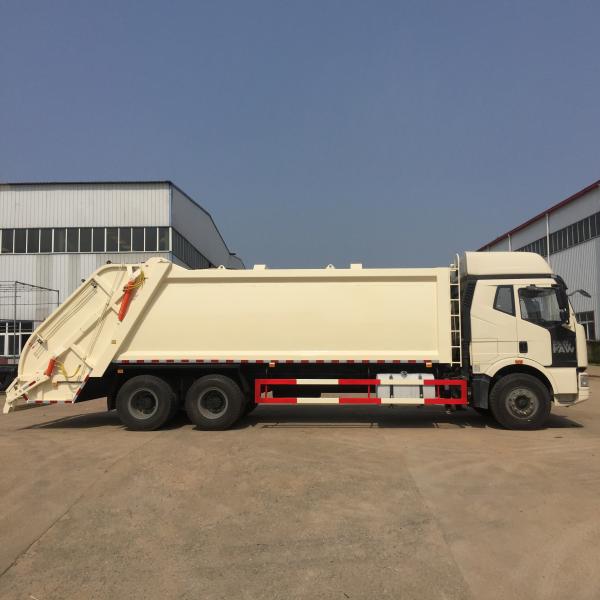

    Product pictures

    Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3

    Quality Engine Capacity 4500ml Special Purpose Truck With 1.2cbm Rubbish Bin Euro 3 for sale
