SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch

    Buy cheap SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch from wholesalers

    Buy cheap SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch from wholesalers
    • Buy cheap SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch from wholesalers
    • Buy cheap SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch from wholesalers
    • Buy cheap SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch from wholesalers
    • Buy cheap SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch from wholesalers

    SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ3257N3647A
    Certification : CCC/ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 100 Unit/Units per Day dump truck
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch

    SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper Truck 336Hp Euro 2

    Product Description

    A dump truck is a truck used for transporting loose material for construction, such as sand, gravel, or demolition waste . A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be dumped on the ground behind the truck at the site of delivery. It is also known as a tipper, tipper lorry, tipper truck.

    Product Parameter

    Truck Model ZZ3257N3647A (LHD)
    Truck Brand SINOTRUK-HOWO
    Dimension(Lx W xH)(unloaded)(mm) 8500X2500X3450
    Cargo body size (L*W*H, mm(mm) 5200X2300X1350
    Cargo body thickness(mm) bottom:8mm, side:6mm,
    Lift type of Carriage Ventral lifting T type

    Approaching angle/Departure angle(°)

    19/26
    Overhang(front/rear) (mm) 1500/1670
    Wheel base (mm) 3625+1350
    Max speed(km/h) 75
    Curb weight(kg) 124500
    Loading Weight(kg) 250000
    Fuel tanker capacity (L) 300L with locking fuel cap
    Fuel consumption(L/100km) 20-40 L/100 km
    Clutch Single-plate dry clutch Φ430mm

    Engine Model

    (Steyr technology, made in China)

    Model WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling
    Horse Power, max(kw/rpm) 336HP, 2200
    Emission Standard EUROII
    Transmission Model HW 19710,10 forwards and 2 reverse

    Brake system

    Service brake Dual circuit compressed air brake
    Parking brake spring energy, compressed air operating on rear wheels
    Auxiliary brake

    Engine exhaust brake

    Steering system

    Model hydraulic steering with power assistance
    Front axle

    HF9 , Steering with double T-cross section beam

    Loading capacity:9000KG

    Rear axle HC16, Casting axle housing, central double reduction with differential locks between axles and wheels
    Color Red
    Tire 12.00R20 tubelee tyre 11 pieces

    Electrical system

    Operating voltage 24V,negative grounded
    Starter 24V,7.35KW
    Alternator 28V,1500W
    Batteries 2*12V.165Ah
    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
    Cab HW76 cabin, with one sleeper.

    Our Service

    1. Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers new accessories with free.

    2. Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will serve the global customers better.

    3. We are serious about after-sales service.

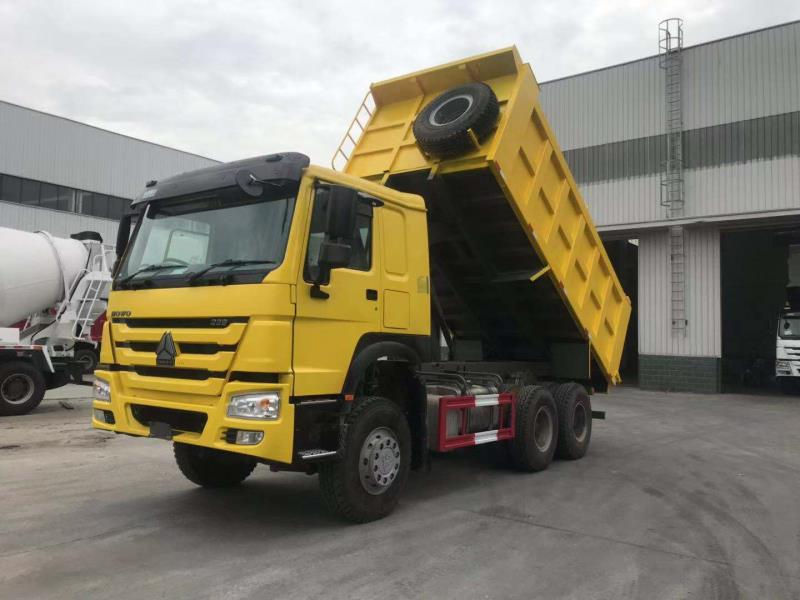

    Product Picture

    SINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry ClutchSINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry ClutchSINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry ClutchSINOTRUK HOWO 25 Tons 6x4 Dump Truck Tipper 336Hp Euro Two Single - Plate Dry Clutch
