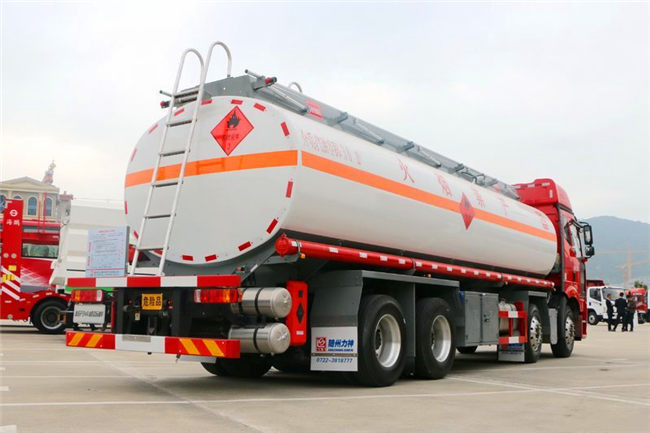

    Large Capacity Tanker Truck 8x4 FAW Diesel Fuel Storage Tank Truck Euro III

    Ask Lasest Price
    Brand Name : FAW
    Model Number : CA5320GYYP63K1L6T4E5
    Certification : ECE,CCC
    Price : NEGOTIABLE
    Payment Terms : L/C, T/T
    Supply Ability : 5000UNITS/MONTH
    Delivery Time : 25-45DAYS
    • Product Details
    • Company Profile

    Large Capacity Tanker Truck 8x4 FAW Diesel Fuel Storage Tank Truck Euro III

    Large Capacity 8x4 FAW Diesel Fuel Storage Tank Truck fuel truck oil storage tank Euro III


    Product Advantages:

    • The tank used advanced butt welding technology using high pressure gas leak detection after finished the tanks, so that the tanks has the characteristics of high strength, stable, sage, etc.
    • Alcohol, chemical tankers produced by South Korean imports of stainless steel, thickness can be 4 5 8mm.
    • All tankers of sulfuric acid, hydrochloric acid, alkali liquor are using roto molding by once. Thickness can be 12 to 16mm. After welding the tank using sand blasting process, achieved anti-rust.
    • According to the use of tankers, can choose centrifugal pumps, gear pumps, copper gear pumps, stainless steel pumps, it has big flow, fast speed of suction and some other characteristics. Also can choose other models of suction pumps.
    • We can produce different series of heating tankers and insulation tankers.

    1. Oil Saving--

    two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.


    2. Safety--

    drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.


    3. Driving comfort--

    New style air bag seat, four point floating suspension with anti-roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc


    4. Reliability--

    all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.


    5. Low application cost--

    large use quantity, complete service and accessory networks and low price.


    Customer Service:


    1: Quality

    1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.

    1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.


    2: Packing & Transportation

    2.1- Packing: Nude Cargo

    2.2- Shipping marks: none

    2.3- Transportation:RORO vessel or container


    3 Delivery

    We could deliver the Goods to any port in China as required within 150 calendar days from the date of receiving the down payment.


    4 Quality/Specifications/Quantity discrepancy

    If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.


    5 Warranty and After-sales service

    We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.


    Technological Parameters:


    DescriptionFAW 8X4 29.4cbm Fuel Tank Truck
    Drive Model8x4
    Fuel TypeDiesel
    ChassisCA1310
    Vehicle Main DimensionsDimensions(L x W x H)mm11980X2500X3500
    Wheel base (mm)1900+4500+1350
    Overhang (front/rear) (mm)1375/2855
    Wheel track (front) (mm)1914/1914
    Wheel track (rear) (mm)1847/1847
    Approach/Departure angle(°)16/10
    Weight in KGSCurb Weight11205
    GVW.31000
    Max. driving speed(km/h)79
    EngineModelBF6M1013
    Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Horse Power(HP)276HP
    Emission standardEuro III
    Gearbox8 forwards & 1 reverse
    ClutchReinforced diaphragm clutch
    Steering GearPower steering, hydraulic steering with power assistance
    Fuel tank (L)380
    Tire11.00R20, 12pcs + 1 spare
    Number of axles4
    Brakesdual circuit compressed air brake
    Tank
    MaterialQ235 carbon steel(Aluminum, stainless steel optional)
    Tank ShapeElliptic cylindrical
    Medium and densityPetrol 700kg/cbm
    Body Internal Dimension9200x2480x1680mm
    Thickness5mm
    Fact cubage29.4cbm
    Optional Equipment

    1. Adding compartments

    2. European standard vapor collecting system

    3. Air conditioner
