    Sinotruk Howo 6X4 Heavy Cargo Truck Euro II Emission Standard 21-30 Tons

    Ask Lasest Price
    Brand Name : HOWO
    Model Number : ZZ1257N4341W
    Certification : ISO/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 Unit/Units per Week
    Delivery Time : 30-35 work days
    • Product Details
    • Company Profile

    Sinotruk Howo 6X4 Heavy Cargo Truck Euro II Emission Standard 21-30 Tons

    SINOTRUK HOWO 6X4 Cargo Truck Euro II Emission Standard 21-30 Tons

    Product Parameter


    Engine

    Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine


    Clutch

    SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

    Transmission

    Transmission, model HW19710, 10 forward and 2 reverse
    Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)

    Propeller Shaft

    Double universal joint propeller shaft with gear-shaped coupling flange

    Front Axle

    New HF7 series, with drum brake system
    Steering with double T-cross section beam

    Rear Axle

    ST16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
    Ratio: 4.3

    Chassis

    Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe
    Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
    Rear suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
    Spare wheel carrier: with one spare wheel

    Steering

    ZF8098, hydraulic steering with power assistance
    Ratio: 22.2-26.2:1

    Braking System

    Front and rear drum brake, four-circuit protection valve
    Service brake: dual circuit compressed air brake
    Parking Brake: spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust brake

    Wheel & Types

    Rims: 8.5-20,10 hole-steel
    Types: 12.00R20

    Driver’s cab

    Long cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,
    VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid
    adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air
    conditioner, adjustable steering wheel.

    Electrical System

    Operating voltage:24V, negative grounded
    Starter: 24V, 7.5KW
    Alternator: 3-phrase, 28V, 1540W
    Batteries: 2×12V, 165Ah
    Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

    Dimensions in mm

    Wheel base (mm)
    Front wheel track (mm)
    Rear wheel track (mm)
    Front overhang (mm)
    Rear overhang (mm)
    Approach angle(°)
    Departure angle(°)
    Overall Dimension (mm)

    4300+1400
    2022/2041
    1830
    1500
    1920
    16
    23
    9120×2496×2958

    Weight in kg

    Permissible loading capacity (kg)
    Dead weight (kg)
    Gross vehicle weight (kg)
    Front axle loading capacity (kg)
    Rear axle loading capacity (kg)

    15830
    9170
    25000
    7000
    2×9000

    Performance

    Maximum driving speed (km/h)
    Maximum gradeability (%)
    Minimum ground clearance (mm)
    Minimum turning radius (m)
    Fuel consumption (L/100km)

    102(reference data)
    62
    314
    10.8
    36(reference data)

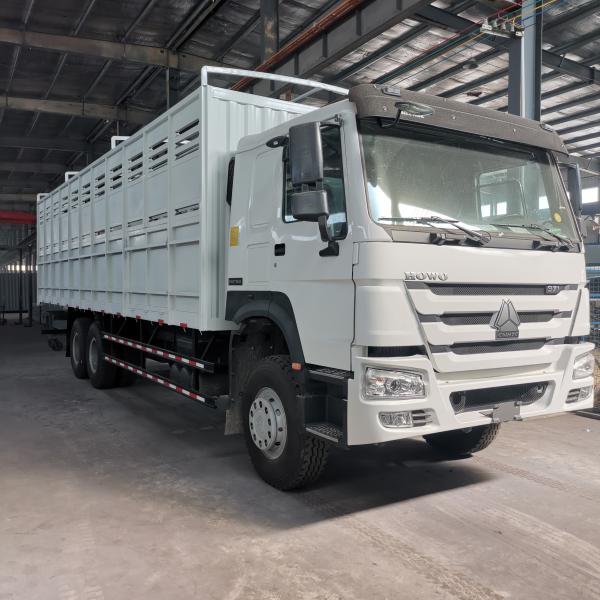

    Product Picture


    Quality Sinotruk Howo 6X4 Heavy Cargo Truck Euro II Emission Standard 21-30 Tons for sale
