    50mm Heavy Duty Semi Trailers

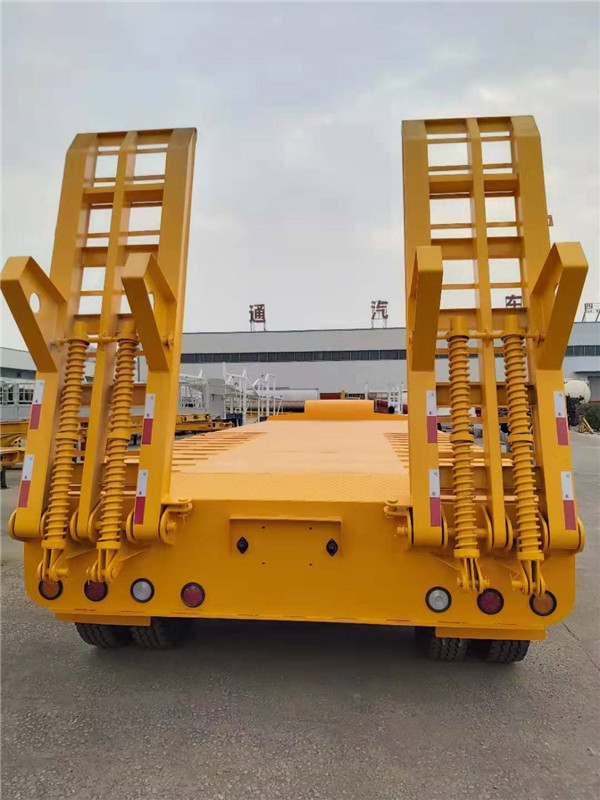

    3 Axle 40 Ton Low Bed Heavy Duty Semi Trailer With 11.00R20 Tyres And Optional Color


    Description:


    SINOTRUK 3 Axle 40 tons Low bed Semi Trailer, can manufacture it according to your needs.And we always use Q345B/6mm steel sheet.The Trailer suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension,.SINOTRUK Cargo trailer three axles low-bed trailer series side wall semi trailers ,fence semi trailer and van semi trailer are mainly used in heavy duty transportation for construction or logistic companies,such as bulk cargo transportin.Also the side wall of them are detachable.We have many years of experience in exporting trucks and trailers. We not only have the certificate and license of truck export but also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products.


    Packing:


    The whole trailer will be waxed before shipment; Shipped in Bulk Cargo, FR Container or by Roro.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver .

    Competition advantages:


    1. Specialization ,standard and accurate meet your requirement.
    2. Product upgrading and expansion of species
    3. Flexible and convenient logistic service.
    4. Long lasting working life time.

    5. We have been engaged in this industry for more than 20 years. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport .


    Product Description:


    Trailer Model3 Axle Low bed Semi Trailer
    Dimension(Lx W x H)(mm)13000x3000x1700
    Curb Weight(KG)10000
    Payload ( KG)60000
    Departure Angle16
    Axle NumberFUWA,13ton.3axles
    Suspension systemMechanical suspension
    Steel Spring10/10/10
    Frame

    The height of the beam is500mm,

    Top flange:20 mm

    Middle flange:14mm

    Bottom flange:20mm

    Platform plate5mm Diamond Plate
    Tire Type and quantity11.00R20 12units
    Traction Pin50mm or 90mm
    Spare Wheel Bracket2 pieces
    Tool Box1 Unit
    Landing Leg28T load landing leg
    Brake systemDual Line braking system ,none ABS.
    Brake air chamber6 air chambers
    Electrical system24V,7 Pole plug

    Tail lamp with turn signal, brake light & reflector,

    side lamp etc.

    One set 6-core standard Cable.
    Side GuardNone
    PaintingColor by customer’s requirement
    PackingPolish with wax before shipping
