    2500kg 1.2Cbm Road Construction Machinery Backhoe Wheel Rock Loader

    Ask Lasest Price
    Brand Name : WZ
    Model Number : WZ25-30
    Certification : ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1000 units/month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    2500kg 1.2Cbm Road Construction Machinery Backhoe Wheel Rock Loader

    WZ25-30 4x4 Backhoe Wheel Rock Loader With 1.2Cbm Loading Bucket Capacity

    Description:

    The features of the WZ series small backhoe loader,it can ensure the original loading function is not affected during the loader operation. The backhoe part is folded as the counterweight, and the loading part is used as the chassis support during backhoe working. The two parts do not affect each other and can also help each other.

    The seat is rotated at any time during backhoe and loader exchange, the sight is wide and the operation is simple.The chassis part uses Isuzu to increase the axle, four-wheel drive is equipped with engineering tires, and cross-country travel is good.General with three mechanical gearboxes, pressure plate clutch, advantages: large gears, thick shafts, large torque for easy maintenance.

    Highly equipped with torque converter drive, no clutch, advantages: simple operation, saving time and effort.Compact body, flexible and convenient, energy efficient.

    The coherent compound action drags two operating handles for easy operation.

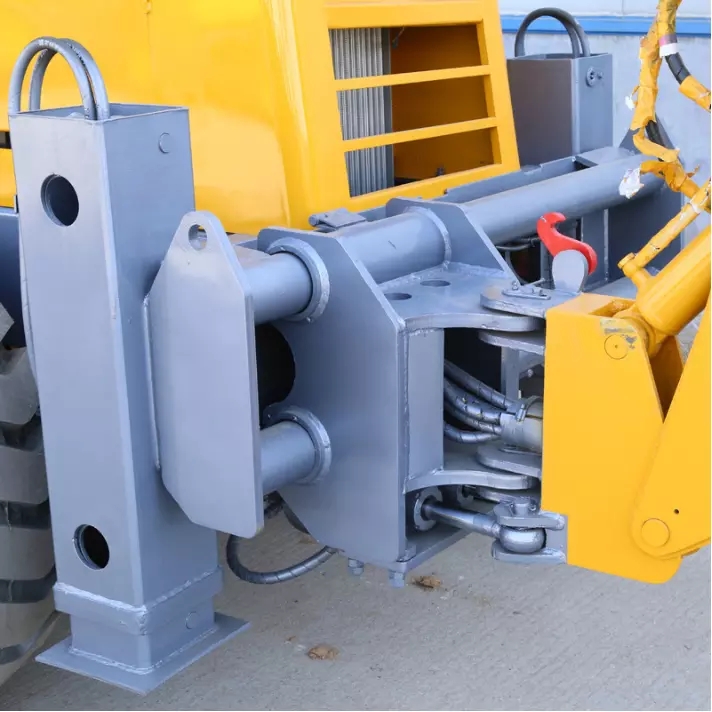

    The excavator is designed as a slideway with the advantage of folding side digging and free sliding.

    With auxiliary oil circuit, upgradeable and practical auxiliary equipment can achieve real multi-function.

    The maintenance is simple, the maintenance is low, and the maintenance cost is low.At present, the reduction of manpower by mechanization is a development trend. The excavating loader is a highly efficient and energy-saving multipurpose engineering machinery and equipment. It is mainly used for afforestation, agro-pastoral construction, channel maintenance, sewer cleaning, dredging of waterways, and clean loading in factories and mines. The small-scale engineering operation environment is widely used in small-to-medium-sized roadway operations that are more than 2 meters wide, and the country’s new rural construction is a new type of urbanization and practical equipment.


    Packing:


    Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.


    Competitive Advantage:

    1. The movable jaw assembly uses high quality casting steel;
    2. The heavy eccentric shaft adopts forging, heat treatment, annealing, crack detection etc. processing,then it can guarantee the stability of lead plane.
    3.The inner bearing uses aligning roller, double row double roller bearing which can guarantee it with higher carrying capacity.
    4.Simple structure, easy operation, convenient maintenance.
    5. Deep crushing cavity and without dead zone, improve the ability of feed and output.
    6. Large adjustable range of discharge opening can meet the different requirements of different specifications.


    Technical Data:


    system pressure18Mpa
    dig hydraulic system20Mpa
    steering hydraulic system12Mpa
    system flow120L/min
    operating weight7600kg
    maximum speed22Km/h
    maximum gradient capacity30°
    loading bucket capacity1m3
    rated loading2500KG
    maximum articulated height of bucket3400(mm)
    bucket discharge height2795(mm)
    bucket discharge distance1048(mm)
    loading lift capacity25KN
    bucket hydraulic translation functionyes
    bucket lift time6.8s
    bucket lower time2.5s
    bucket discharge time1.2s
    maximum tractive force39KN
    maximum breakout force38KN
    backacter bucket capacity0.3m3
    backacter discharge height3878(mm)
    maximum digging depth4080(mm)
    maximum digging radius5688(mm)
    bucket slewing angle190°
    bucket digging capacity46KN
    bucket stick digging capacity31KN
