    37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader

    Ask Lasest Price
    Brand Name : WZ
    Model Number : WZ10-20
    Certification : ISO/CCC
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 pieces per month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    37w 3.4 Ton Road Construction Machinery Hydraulic Backhoe Loader

    WZ10-20 Backhoe Loader Road Construction Machinery With 3.4 Tons Weight


    Product information


    Weichai four-cylinder supercharged engine is featured in high fuel efficiency, low emission and large power margin. It is equipped with the driving & steering front axle, maintenance-free wet-type unilateral braking rear axle and four-speed synchronous shift gearbox designed and manufactured specially by CARRARO; its forward and backward directions are switched by electric hydraulic control. The loader working device is an eight-bar automatic leveling mechanism. The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working. The excavator working device can rotate 180 degrees along the gyration center at the back of the frame. The A-shaped stabilizer and the center-positioned excavating device are strong in working stability. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size. Its cab has a board view and is configured with rail-mounted upturning glass window.


    Specification



    Dimensions (mm)5500*1720*2650
    Operating Weight3400 kg
    Rated Load1500 kg
    Rated Power40 kw (55 hp)
    Backhoe Capacity0.1 m³
    Loader Capacity0.75 m³
    Backhoe Max. Digging Depth2000 mm
    Backhoe Max. Digging Height3300 mm
    Backhoe Max. Digging Radius2900 mm
    Backhoe Max. Dumping Height1850 mm
    Loader Max. Dumping Height2800 mm
    Loader Max. Dumping Distance800 mm
    Backhoe Max. Breakout Force25 kn (2550 kg)
    Loader Max. Breakout Force36 kn (3672 kg)
    Travel Speed0 - 26 km/h
    Gradeability30°
    Min. Turning Radius3500 mm
    Working Pressure16 MPa
    Wheel Tread1630 mm
    Wheel Base2670 mm
    Tire Model20.5 - 16
    Tire Pressure250 KPa
    Transmission TypeHydraulic

    FAQ:


    1.Q: How to get an accurate quotation?
    A:To get a quotation list, please send inquiry or send email to us directly. The email addresses are shown in the contact detail page. As we have different models and different implements, please indicate following details in your inquiry email.
    1) Output (how many HP) or Model No.
    2 ) Cooling system (water cooling system / radiator)
    3) Starting method (hand crank / electric (motor ) start)
    4) Order quantity: sample order or container order
    These are very important for providing you an accurate and favorable price.
    2. Q: What’s your payment item ?
    A: T/T, L/C.
    3. Q:About the shipment
    A:Usually if you didn't indicate the shipping requirement in the inquiry email, we will quote on FOB price which doesn't include shipping cost.
    If you need us ship the machine to your country, please also tell us the destination port.
    4. Q:What’s your delivery time ?
    A: Within 20 days after receiving the deposit.
    5. Q:Do you have export experience?
    A: Yes, more than 10 years.
    We have exported to 80 countries.

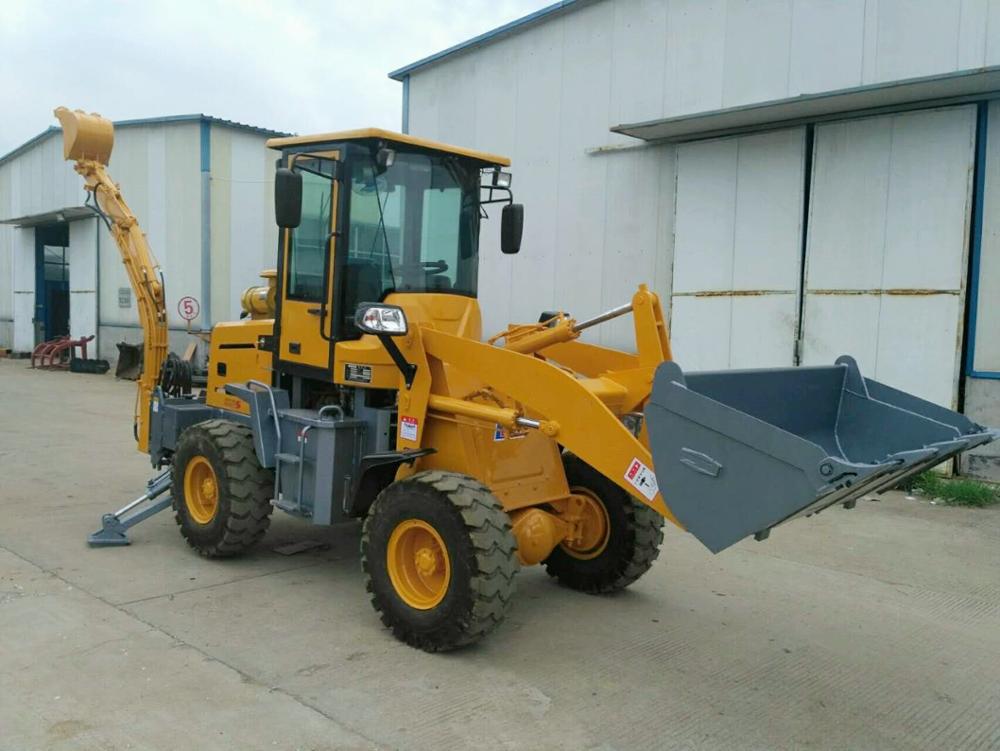

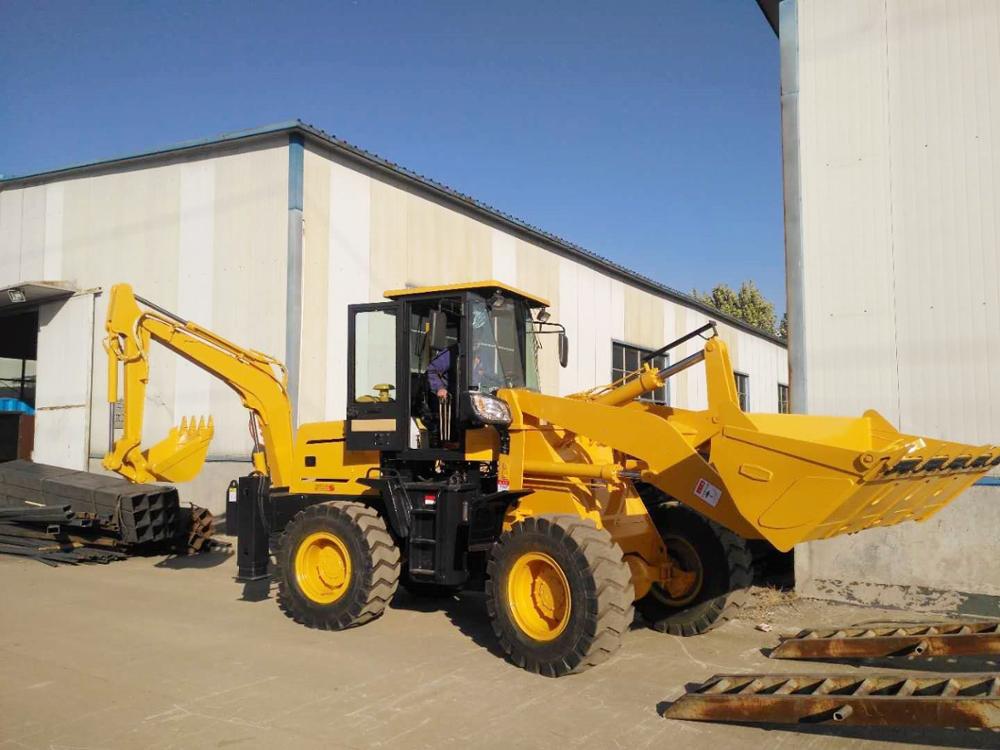

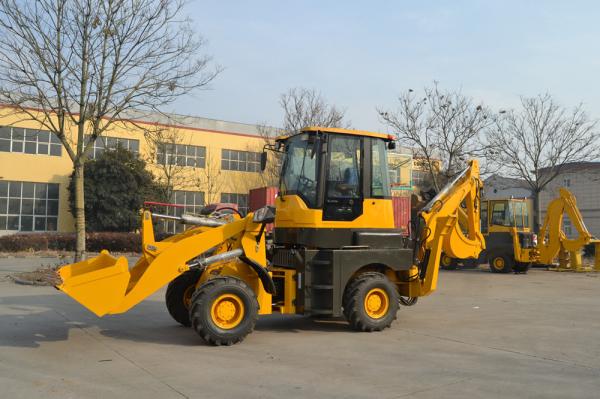

    Photos
