    WD Series Engine Sinotruk Howo 6X4 Heavy Duty Dump Truck

    SINOTRUK HOWO EURO 2 6X4 Heavy Duty Dump Truck With WD Series Engine And German Sreering


    Product Description


    30 - 40 Tons 6X4 Tipper Dump Truck 10-25CBM Front Lifting Hydraulic Cylinder
    Be comprehensive with Euro2 and Euro3 engine equipped.
    Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on.
    Power range: 266HP - 420HP.
    It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
    Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
    New HOWO dump truck, High Quality , More Lighter,
    High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.


    Product Parameter


    Product Name

    SINOTRUK HOWO 6X4 Dump Truck

    Chassis Model

    ZZ3257N3847A

    Driving Type

    LHD (RHD is optional)

    Cabin

    HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

    Engine

    Make: SINOTRUK
    Diesel 4-stroke direct injection diesel engine
    Engine model: WD615.69, Euro 2, 336 HP
    6-cylinder in-line with water cooling, turbo-charging and intercooling
    Displacement: 9.726 L

    Transmission

    HW19710, 10F & 2R, with PTO
    Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

    Steering

    ZF power steering, modol ZF8118, hydraulic steering with power assitance

    Front Axle

    HF9,1x9000 KGS

    Steering with doubleT-cross section beam

    Rear Axle

    HC16, 2x16000 KGS

    Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

    Ratio:5.73

    Propeller Shaft

    Double universal joint propeller shaft with gear-shaped coupling flange

    Chassis

    Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
    Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
    Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

    Brake

    Service brake: dual circuit compressed air brake
    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
    Auxiliary brake: engine exhaust brake

    Electrics

    Operating voltage: 24 V, negative grounded
    Starter: 24 V, 5.4 Kw
    Alternator: 3-phase, 28 V, 1500 W
    Batteries: 2 x 12 V, 165 Ah
    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

    Tyres

    12.00R20, radial tyres with one spare tyre

    Fuel Tank

    300L

    Cargo Body

    5800*2300*1500 mm, 20 CBM, Floor 8mm Side 6mm

    Overall Dimension

    8750*2550*3450mm


    Advantage


    1) competitive price, cost-effective
    2) with all kinds of truck model, which can fulfil your requirements
    3) all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
    4) using the high strength steel, make it has a long service life
    5) The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
    6) excellent apperance of cabin, safety, reliable
    7) quick and efficient spare parts supply bring you more convenient
    8) you can choose cargo body with Front lifting type or Middle lifting type which you prefer
    9) The hydraulic system using HYVA brand or Domestic famous brand
    10) low fuel consumption
    11) strong enough engine
    12) fast delivery time, we can arange production according to your needs exactly and quickly
    13) professional import and export dealing precedure, make customs clearance more high efficiency

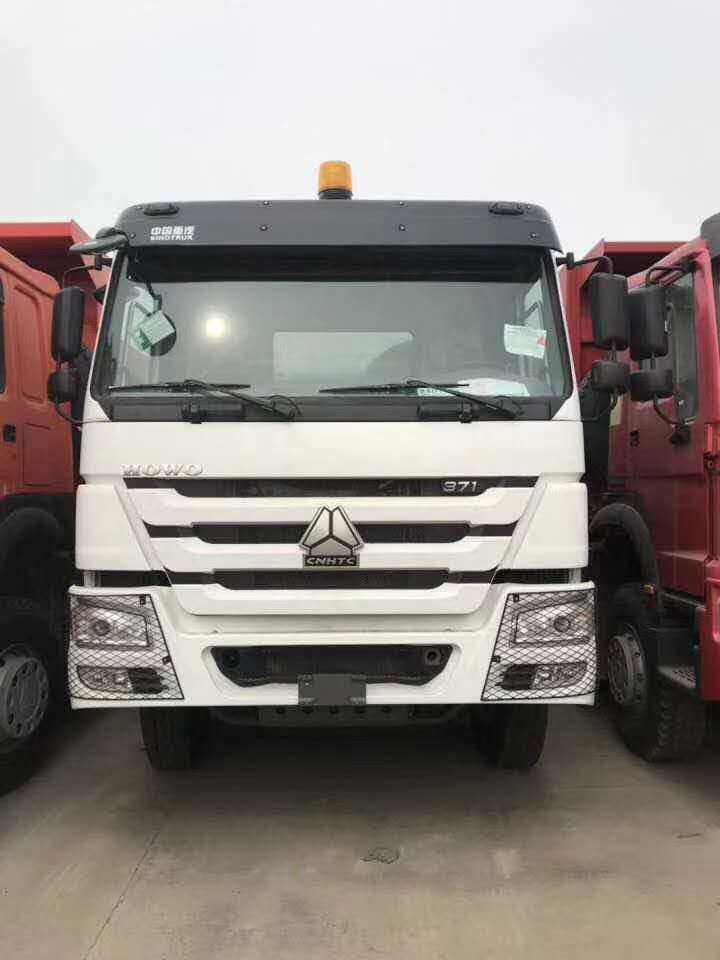

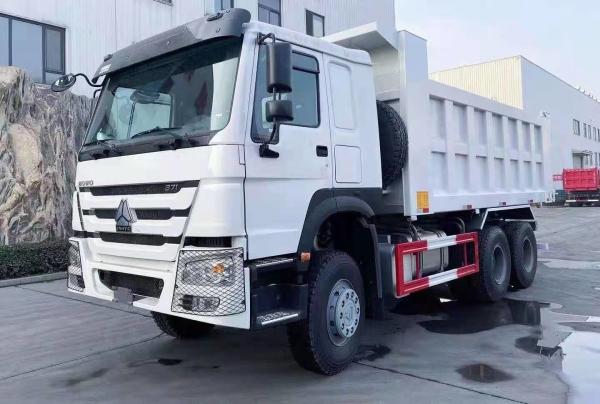

    Product Picture



    Quality WD Series Engine Sinotruk Howo 6X4 Heavy Duty Dump Truck for sale
