Brand Name : | sinotruk |
Model Number : | howo |
Price : | Negotiable |
Payment Terms : | L/C,T/T |
Supply Ability : | 500 units/month |
Delivery Time : | 30-45 work days |
Certification : | iso/ccc |

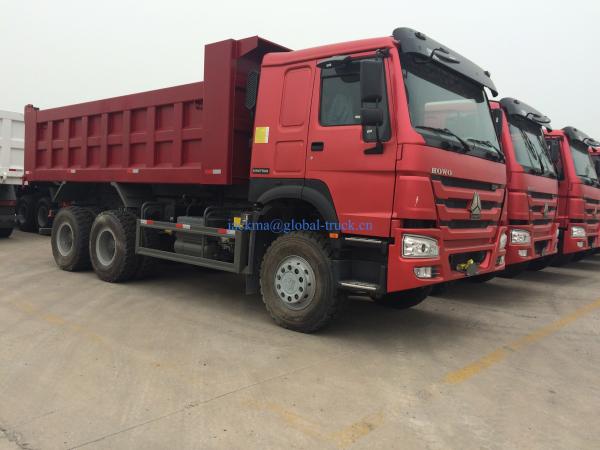

Used 6x4 Dump Truck SINOTRUK HOWO Ton 10 Wheels Used Dumper Truck For Sale
Main Discription:
Model | ZZ3257N3447A | ||
Condition | New | ||
Drive type | 6×4 | ||
Brand | HOWO Dump Truck | ||
Steering Wheel Type | LHD(Left hand drive) (RHD is in option) | ||
Overall Dimension(mm) | 7835×2496×3170 | ||
The total mass(Kg) | 25000 | ||
Kerb weight(kg) | 12390 | ||
Wheel base(mm) | 3425+1350 | ||
Dimension of cargo body(mm) | L×W×H | 5200×2300×1500 | |
Thickness of steel plate | Bottom: Side: | ||
Capacity | |||
Tipping system | HYVA Front tipping system | ||
Fuel Type | Diesel | ||
Engine | Type | SINOTRUK brand,WD615.47 Inline six-cylinder, water-cooled, four-stroke, turbocharged inter-cooled Direct injection | |
Emission standard | EURO II | ||
Horse power | 371hp | ||
Maximum output | 273Kw @ 2200 rpm | ||
maximum torque | 1500N.m | ||
Displacement(L) | 9.726 | ||
Cabin | HW76 Cabin with two seats, and one sleeper, air conditioner, | ||
Steering | German hydraulic steering with power assistance | ||
Transmission | Manual Type. HW19710 Sinotruk 10 Speed Transmission,10 forward and 2 reverse | ||
Clutch | Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting | ||
Front axle | HF9(9 ton), plate (disc) brake | ||
Driving axle | HC16(16 ton) Heavy hub reduction drive axle | ||
Brake | Service brake: Brake gap can be adjusted automatically, double circulation air brake system Parking brake: Potential springs pressing on middle and reel wheels Engine brake: Engine exhaust brake(EVB) | ||
TYRE Size | 12.00-20 tires No. tire: 10+1 spare | ||
Suspension system | Leaf spring type | ||
Leaf Spring of Front/Rear | 10/12 | ||
Air condition includes | YES | ||
Fuel tank | 300L | ||
Color | As the customer request |
![]() |
