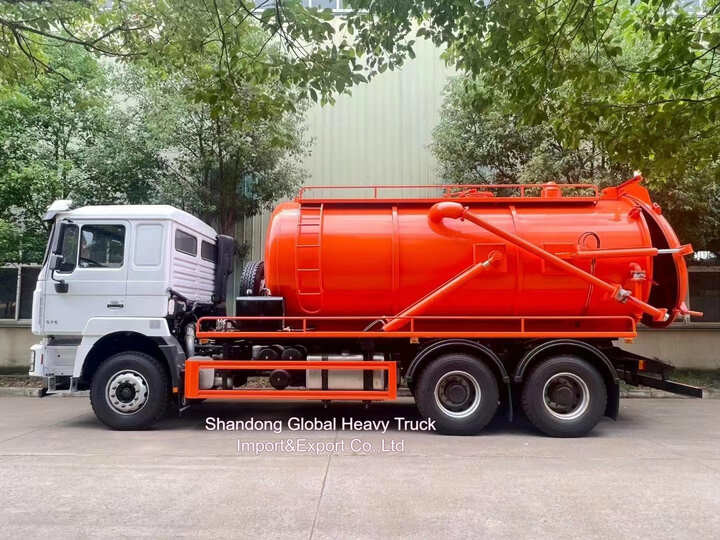

Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water

Shandong Global Heavy Truck Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water from wholesalers

    Buy cheap Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water from wholesalers
    • Buy cheap Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water from wholesalers
    • Buy cheap Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water from wholesalers
    • Buy cheap Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water from wholesalers
    • Buy cheap Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water from wholesalers

    Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water

    Ask Lasest Price
    Brand Name : shacman
    Model Number : shacman f3000
    Certification : ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
    Price : Negotiate
    Payment Terms : L/C,T/T
    Supply Ability : 300 units/mouth
    Delivery Time : 40 worker days
    • Product Details
    • Company Profile

    Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water

    Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water


    The Vacuum Jetting Tank SKD, also known as the Vacuum Jet Body Superstructure or Combined Vacuum Jetting Tank Body, is a versatile and powerful piece of equipment designed for efficient sewer and septic system maintenance. Here's a detailed look at its features and applications in a slightly different tone:
    • Hydraulic-Lift Cylinder Tank: The cylinder vacuum tank can be hydraulically lifted to an angle of 40-45 degrees, and its rear door can be opened and shut using hydraulic power. This makes for easy and convenient operation.
    • High-Performance Vacuum Pump: We use EU vacuum pumps (Italy brand) or top-tier Chinese double vacuum pumps of similar quality. These pumps are super powerful and highly efficient. They can be operated either by a hydraulic motor or an auxiliary engine, offering flexibility in operation.
    • Advanced High-Pressure Pump: The equipment is fitted with imported high-pressure pumps or top Chinese pumps of equal quality. These pumps deliver strong water jets to clear blockages.
    • Overfill Protection System: An overfill system with a music horn is installed. When the tank is full, this system prevents sewage water from entering and damaging the vacuum pump.
    • Excellent Design: The Vacuum Jetting Tank has an attractive shape, a rational structure, and is built to last. It's durable and has a long service life.
    This combined vacuum jetting tank body (also referred to as vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) is designed to be mounted onto a chassis. It can collect and clean various liquids like dirty water, sludge, septic waste, and crude oil, as well as solid materials such as small stones and bricks. It's perfect for cleaning sewers, cesspits, cesspools, and gullies, making it a valuable tool in the environmental and sanitation sectors.
    The equipment consists of two primary components. One is the high-pressure jetting part, which is used to clear blocked sewage. The other is the vacuum suction part, which collects the sewage. Together, these two components make the Vacuum Jetting Tank a powerful solution for maintaining sewage and septic systems.
    Product Technical Specifications
    ItemDescriptionsSpesifications and Types
    VehicleBrandDong Runze
    Overall Dimensions L*W*H8670*2500*3690mm
    WeightsGVW.25000kgs
    Kurb Weight10520kgs
    Rated Payload15350kgs
    ChassisChassis BrandShacman
    Drive Type6x4
    SteeringLHD or RHD
    EngineBrandWeichai engine
    Power190-385HP
    Emmission LevelEURO 2 or Euro 3 or EURO 5-6
    PerformanceMax. Speed76km/h
    Wheel base4500 +1300 mm
    Tyre Specifications11.00-20 18PR,11.00R20 18PR,12.00-20
    No. of Tyre6 pcs (1 spare tyre included)
    CabCab Capacity2 persons allowed
    Body/SuperstructureTankCapacitywater tanker 6m3 sewer tanker 10m3
    Material5mm or 6mm high quality carbon steel
    Vacuum pumpChina famous vacuum pump and high pressure pump
    Vacuum rate99% thorically
    Suction head6m
    Rotation speed500 rpm,low noise,high efficiency
    Basic
    Equipments
    Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose
    Paint
    Tank color is according to client's requirements.
    Optional EquipmentsItaly or Spain vacuum pumps
    Stainless steel
    Anti-rust coating inside tank

    Rhd Shacman F3000 Hydro Excavators Combined Sewer Vacuum Suction Sewage+4000L Clean Water
