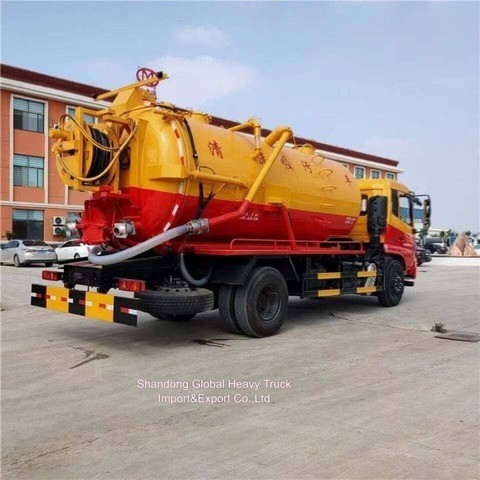

    Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck

    Ask Lasest Price
    Brand Name : Dongfeng
    Model Number : Dongfeng
    Certification : ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
    Price : Negotiate
    Payment Terms : L/C,T/T
    Supply Ability : 300 units/mouth
    Delivery Time : 40 worker days
    • Product Details
    • Company Profile

    Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck

    Dongfeng 6*4 High Condition 290HP Vacuum Sewage Suction Tanker Truck Sewage Suction Truck


    Function:

    (1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.

    (2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

    (3) Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters

    Features:
    a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
    b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
    c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
    d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
    e.Nice shape ,rational structure,durable and long service life.
    NameSewage Suction Truck
    Dimension(LxWxH)10150x2550x3550
    Total Mass25000kg
    Rated Payload5270kg
    Curb Weight7370kg
    Passenger3
    Approach/Departure Angle20/12
    The Parameters of Chassis
    ModelDFH1250
    Driving Type6X4 left/right hand drive
    Wheelbase5350+1350mm
    Gearboxnine speed forward and one reverse, manual
    Tire11.00R20 18PR
    The Number of Tires9+1(spare tire)
    Front/Rear Suspension1400/3050
    The Parameters of Engine
    Manufacturer/ModelDDi75E300-60
    Rated Power290Hp,300Hp,340Hp
    Fuel TypeDiesel oil
    Displacement/Capacity7500ml
    Emission StandardEuro3
    CylinderStraight/6/intercooling
    The Parameters of Equipment
    Tank Capacity22m3
    Vacuum Pump Rotation SpeedSpeed 800r/m-1400r/m
    Max. Suction Lift>7m
    Vacuum>500mmHg
    Time for full suction<5min
    Common AccessoriesVacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level, lock system for rear cap, four-way valve, moisture separator, sprinkler (optional), alarm for full suction (optional).
